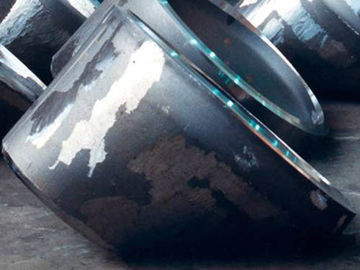

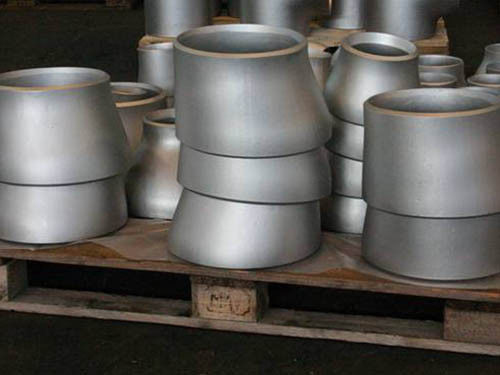

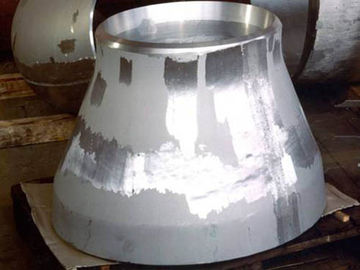

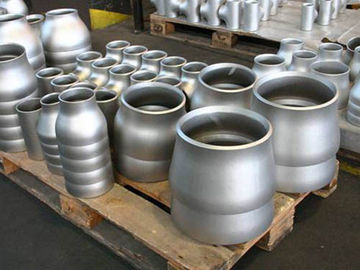

Pipe Reducer EN10253 BW Pipe fittings

Pipe Reducer

Reducer is a kind of fitting that be used for reducing piping size. Concentric reducer is most commonly used and often eccentric reducer used in piping in about pump and pipe rack area.
Carbon Steel Reducers with A234 WPB and 1/2 to 56-inch Size (DN15 to DN1400)

Size: Up to 56” N.B. all schedules


Pipe reducer Draws:

Wall Thickness: SGP, STD, SCH40, SCH80, SCH160. XS,XXS and so on.

Max. wall thickness: 200mm



Key Specifications/Special Features:

Standard:
ANSI B16.9 / 16.28/16.25

Surface treatment:
Transparent oil, rust-proof black oil or hot galvanized.
Special design available All the production process are made according to ISO9001:2000 strictly.

kind:
Concentric reducer, Eccentric reducer
Based on different materials, pipe caps include carbon steel cap, stainless steel cap, and alloy steel cap etc.
Depending on their construction, pipe caps contain threaded cap, tapered cap and anti-roll cap etc.

Materials
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6


High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
