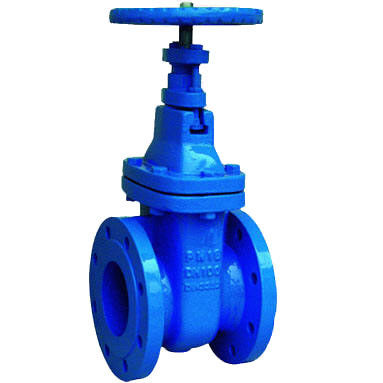

DIN Gate Valve

Name: DIN Gate Valve
Brand: DIN Gate Valve
SKU: DIN Gate Valve
Rating: 4.8 (160 reviews)

Large Image : DIN Gate Valve Get Best Price

Product Details:

Contact Now

Detailed Product Description

Product Description

Desingn conforms to DIN3352
Face to Face dimension conforms to DIN3202 F5 (EN 558-1 series 15 / ISO5752 series 15 )
Flange Driling Conforms to DIN2533 PN16
Valves test to DIN3230/ISO5208
Full bore Ensured
Solid Wedge Disc
Metal Seat (Brass ,Bronze or Stainless steel Trim)
Suitable medium: water, oil, gas
Nominal Pressure: 1.6Mpa .
Shell Test Pressure: 2.4Mpa.
Seat Test Preeure: 1.76Mpa.
Temperature from -10 to 140
