Product Details:
|
| Socket Weld Forged Pipe Fittings, Threaded Forged Steel Pipe Fittings |
| 1. Forged Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc. |
| 2. Connection: Socket Welded, Threaded |
| 3. Size Range: 1/8" - 4"(6mm - 100mm) |
| 4. Pressure Rating: |
| Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS |
| Socket welding Wog 3000, 6000, 9000 LBS |
| 5. Specifications: |
| 1) Standard: ASME B 16.11, MSS-SP-79 83 9597 |
| 2) Material: ASTM A105, ASTM A182(F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91). |
| 3) Size of raw material: Dia. 19-85mm round bar. |
| 6. Technology: Forged |

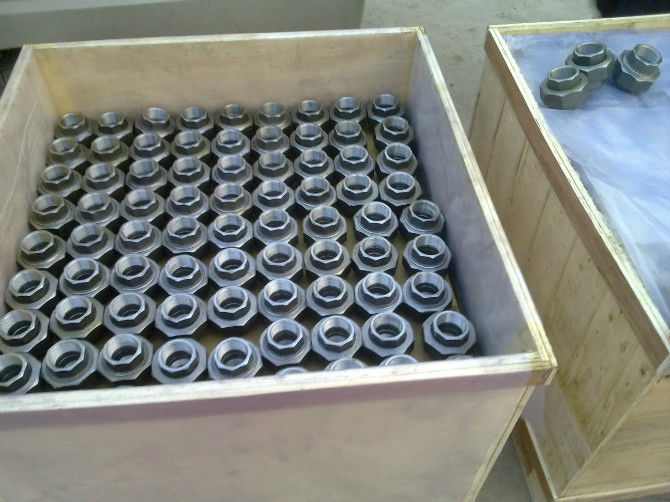

| 7. Packing: Wooden cases or wooden pallet or as per customers requirement |
| 8. Delivery Time: 25 days after order conformed |
| 9. Payment: By T/T or L/C |
| 10. Applications range: Petroleum, chemical, machinery, electric power, shipbuilding, |
| Papermaking, construction etc |
ASTM A105 Mss Sp-83 Ss304 Socket Welding Forged Steel Union
| Descriptions | Size | Remark | |
| Elbow | 45°/60°/90°/180° | 1/2"-48" | Standard: ANSI; BS; JIS; DIN; MSS; etc |
| Flanges | PL/SO/WN/SW/BL/IF | 1/2"-48" | Material: Carbon steel; Stainless steel; Alloy steel; Cast iron; etc |
| Reducer | CON/ECC | 1/2"-48" | Structure Technique: Forged and casting flanges. |
| Tees | Equal/reducer | 1/2"-48" | Surface Coating technique: Sand Blast; Lacquering; |
| Nipple | Threaded/Hex/ Round | 1/2"-48" | Surface finishing: black, electro-galvanized, hot-galvanized |
| Union | Male/female | 1/8"-6" | Pressure:3000#-9000# |
| Outlet | Weldolet/threadolet/socko let | 1/8"-6" | Standard:MSS SP-97 |
| Cap | BW CAP | 1/2"-48" | Best price&high quality |
| Coupling | SW/Threaded | 1/8"-6" | PLE;PSE;TLE,BSE;TOE |
| Plug | Square/hex/round | 1/8"-4" | Large QTY&Lower price |
| Bushing | Round/Hex/Flush | 1/8"-4" | Pressure:3000#-9000# |
| Swaged nipple | Threaded/Plain | 1/8"-4" | SCH10S-SCH80 |
