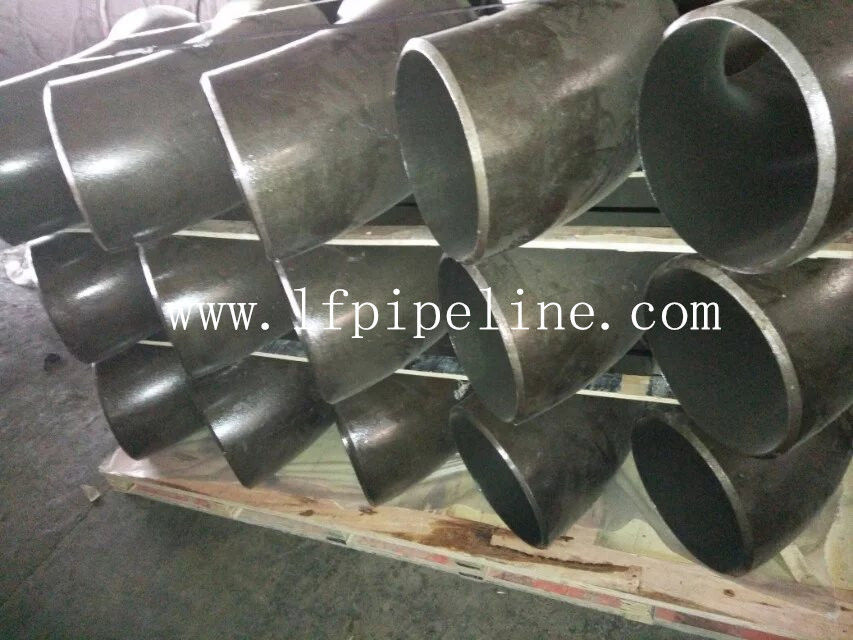

Short Radius Elbows - ASME B16.9

Short Radius Elbows - ASME B16.9
Short Radius Elbows - ASME B16.9

Large Image :  Short Radius Elbows - ASME B16.9 Get Best Price

Product Details:
Contact Now
Detailed Product Description

Dimensions of short radius elbows - ASME B16.9

Short Radius Elbows - ASME B16.9 0

NPS OD, D Center to End , A
1 33.4 25
1 ¼ 42.2 32
1 ½ 48.3 38
2 60.3 51
2 ½ 73 64
3 88.9 76
3 ½ 101.6 89
4 114.3 102
5 141.3 127
6 168.3 152
8 219.1 203
10 273 254
12 323.8 305
14 355.6 356
16 406.4 406
18 457 457
20 508 508
22 559 559
24 610 610

Tag:

pipefitting,

buttwelding,

bend
