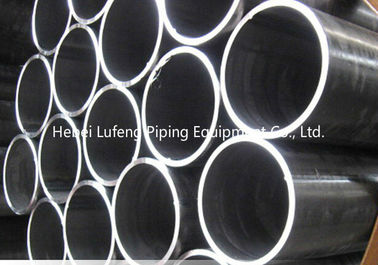

1. Product detail of steel pipe 600mm
| Product name | LARGE DIAMETER CARBON LSAW STEEL PIPE 600MM 600mm diameter pipe | |
| Technique | Longitudinal Electronic Resistance Welding(ERW) 600mm diameter pipe | |
| High Frequency Welding(HFW) 600mm diameter pipe | ||
| Material Quality | Steel Grade | Q195 similar to a283 GR.B, 040a10, ss330, sphc |
| Q235 similar to a283 GR.D, 080a15,CS type B | ||
| Q345 similar to a737 GR.B, SS400, S235JR 600mm diameter pipe | ||
| Material Type | Available in cold rolled and hot rolled 600mm diameter pipe | |
| Size | W.T | 2mm-12mm 600mm diameter pipe |
| Diameter | 219mm-325mm 600mm diameter pipe | |
| Length | 5.8m-12m 600mm diameter pipe | |
| Surface | Galvanized, 3PE, painting, coating oil, steel stamp, drilling, etc | |
| Ends | Plain ends, cutting, threading, beveled, flange, etc 600mm diameter pipe | |
| Packing | Packing in bundle with steel strips; with seaworthy package at the end; could be done with your requirement. 600mm diameter pipe | |
| Inspection | With Chemical Composition and Mechanical Properties Testing; Hydrostatic Test, Dimensional and Visual Inspection, With Nondestructive Inspection600mm diameter pipe | |
| Certification | BV, IAF, SGS,COC, ISO or as per customer 600mm diameter pipe | |
| Application | Urban construction pipe, machine structure pipe, agriculture equipment pipe, water and gas pipe, Greenhouse pipe, Scaffolding pipe, Building material tube, Furniture tube, Low pressure fluid tube, Oil pipe, etc | |
| Trade Terms | FOB, CFR, CIF, EXW, etc. 600mm diameter pipe | |
| Payment | L/C, D/A, D/P, T/P Western Union, MoneyGram acceptable, T/T preferred | |
| Delivery Time | Usually within 10-30 days after receipt of deposit, ASAP | |
| Loading Port | Xingang , Tianjin 600mm diameter pipe | |
| Cooperation | MSK, CMA, MSC, HMM, COSCO, UA, NYK, OOCL, HPL, YML, MOL | |
| Ship-owner | ||
2. Material quality of steel pipe 600mm
| Elements | Chemical Composition% | Mechanical Property | ||||||
| Material |
C%
|
Mn% | S% | P% | Si% | Yield Point | Tensile Strength | Elongation |
| (Mpa) | (Mpa) | (%) | ||||||
| Q195 | 0.06-0.12 | 0.25-0.50 | <0.050 | <0.045 | <0.30 | >195 | 315-430 | 32-33 |
| Q215 | 0.09-0.15 | 0.25-0.55 | <0.050 | <0.045 | <0.30 | >215 | 335-450 | 26-31 |
| Q235 | 0.12-0.20 | 0.30-0.70 | <0.045 | <0.045 | <0.30 | >235 | 375-500 | 24-26 |
| Q345 | <0.20 | 1.0-1.6 | <0.040 | <0.040 | <0.55 | >345 | 470-630 | 21-22 |

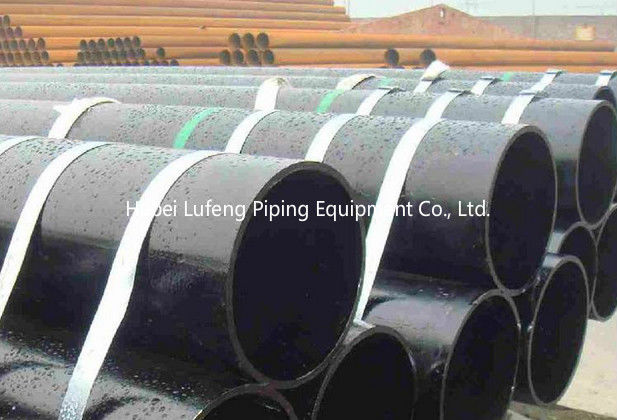

3. Production Line & Packing of steel pipe 600mm
