flange connection, worm or hand dn300 butterfly valves 4 inch butterfly valve description
| Size | A | B | C | D | E | F | H | J | |
| mm | inch | ||||||||
| 50 | 2 | 69 | 141 | 32 | 12.7 | 125 | 18 | 65 | 50 |
| 65 | 2½ | 73.5 | 146.5 | 32 | 12.7 | 145 | 18 | 65 | 50 |
| 80 | 3 | 96.9 | 155.9 | 32 | 12.7 | 160 | 18 | 65 | 50 |
| 100 | 4 | 103.5 | 169.5 | 32 | 15.9 | 180 | 18 | 90 | 70 |
| 125 | 5 | 118 | 189.5 | 32 | 19.1 | 210 | 18 | 90 | 70 |
| 150 | 6 | 134 | 207 | 32 | 19.1 | 240 | 22 | 90 | 70 |
| 200 | 8 | 168 | 260 | 38 | 22.2 | 295 | 22 | 125 | 102 |
| 250 | 10 | 200 | 292 | 38 | 28.6 | 355 | 26 | 125 | 102 |
| 300 | 12 | 243 | 332 | 38 | 31.8 | 410 | 26 | 125 | 102 |

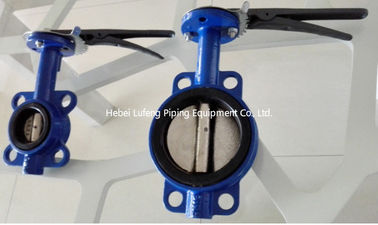

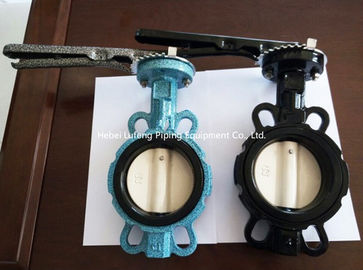

Cast Iron flange/wafer butterfly valve
Nominal pressure: PN10/16
Body material: Cast Iron
Stem: 2Cr13, stainless steel, carbon steel,SS410
Disck: SS304, grey iron.
Seat: EPDM/NBR/PTFE
Suitable medium: Water ,steam oil ...
Temperature:-40 centigrade 300 centigrade.
We can make various conduct term, under FOB term, we must
transport the cargo to the port in time without any delay.
Regarding CIF term, we can arrange all,
Packaging & Delivery
Packaging Details: High grade packing:
1. we have many kinds of export packing, both bags or paper cartons;
2. we can design the dimension of the boxes according to client's requests;
3. for the large quantity order, we can put the clients logo and an information asked by the clients;
4. All packing conditions can be with pallets or not with pallets, just according to your specific requests;
5. Really high grade packing conditions, can definitely consider clients customed requests;
6. we can talk details if needed.
