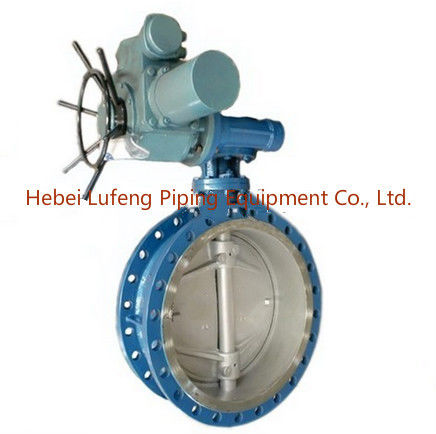

motorized butterfly valve dn700
Product Description
1.Features:
(1) 90° movement for full open/close position.
(2) Excellent control characteristics.Tight shut-off even after innumerable operations.
(3) Installation cost considerably reduced because of very low weight and compact design.
(4) Longer life and reliable service with minimum component wear.
(5) Renewable seats. No supplementary gasket required with the adjacent pipework.
(6) Body & Stem totally protected from service fluid.
2.Technical Data:
(1) Nominal Diameter DN(mm)40(1-1/2’’)~1200(48’’)
(2) Nominal Pressure PN(MPa): 1.0~4.0
(3) Testing Pressure PN(MPa): Shell: 1.5~6 Sealing: 1.1~4.4
(4) Working Temperature:-30~+450°C
3.Meterial could be:
| Item | Part Name | Materials |
| 1 | Body | Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200, GB12226 HT200; |
| Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; | ||
| Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M; | ||
| Carbon Steel: ASTM A216 WCB | ||
| 2 | Stem | Zinc Plated Steel; |
| Stainless Steel: ASTM A276 Type 316, Type 410, Type 420, ASTM A582 Type 416; | ||
| 3 | Taper Pin | Stainless Steel: ASTM A276 Type 304, Type 316, EN 1.4501; |
| 4 | Seat | stainless steel ,PTFE, EPDM , NBR |
| 5 | Disc | Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; |
| Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M, EN 1.4408, 1.4469; 1.4501; | ||
| AL-Bronze: ASTM B148 C95400; | ||
| 6 | O-Ring | NBR, EPDM, Neoprene, Viton; |
Packaging & Shipping
1.Payment: T/T or L/C
2.Shipment:Within 20days after your po.
Our Services
1.Best price with high quality,
2.18 months Guarantee Period.
3.The standard could be ANSI,DIN,GB,ISO,GOST,BS and so on.
Company Information
1.More than 40 years Professional Experience.
2.The sample of material will be preserved more than 10 years.
3.We have obtained safety approval of API,CE,ISO.
FAQ
1.Standard.
2.Size.
3.Material .
4.Connection type.
5.Medium.
6.Temperature.
