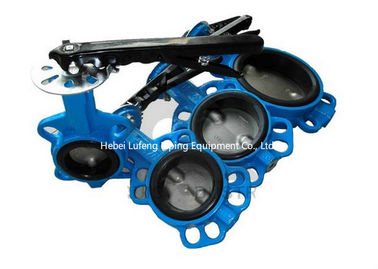

Trade Assurance cast iron LUG DN50 PN10 butterfly valve

Trade Assurance cast iron LUG DN50 PN10 butterfly valve

cast iron LUG DN50 PN10 butterfly valve
DIN, BS standard
OEM service
stainless steel disc
handlever operation ISO 9001-2008


Features:
1. Small in size and light in weight, easy instillation and maintenance. It can be mounted wherever needed
2. Simple and compact construction, quick 90 degrees on-off operation
3. Minimized operating torque, energy saving
4. Flow curve teeing to straight line, excellent regulation performance
5. Long service life, standing the test of tens of thousands opening/closing operations
6. Bubbles-tight sealing with no leakage under the pressure test
7. Wide selection of materials, applicable to various mediums

Wafer type butterfly valve:Designed according to BSEN593 and MSS SP-67 and API 609 and compatible with ANSI 125/150, BS4504, DIN PN10/PN16
flangesSize: DN40-350mm
Rating: PN10/16, ANSI125/150
Material of main parts:Body: cast iron, ductile iron, stainless steel, cast steel (WCB)
Disc: Monel, ductile iron, stainless steel, Al-bronze, ductile iron with nylon coated
Seat: EPDM or NBR or PTFE or VITON or vulcanized in body
Stem: SS416 or SS316 or Monel
Pin: SS316 or Monel
Operated: handle or wormgear, pneumatic, electric actuator
Inner packing:Individual polybag for each valve
Outer packing:Wooden case
