Factory direct sales 304 stainless steel lp butterfly valve

Place of Origin Cangzhou, China (Mainland)
Packaging Details PACKING AS CUSTOMIZED.

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Cast Iron Electric Actuator Wafer Butterfly Valve Features:
(1) These butterfly valve Small in size and light in weight and maintenance. It can be mounted wherever needed.
(2) Simple, compact structure, quick 90 degree on-off operation.
(3) Disc has two-way bearing, perfect seal, butterfly valve without leakage under the pressure test.
(4) Flow curve tending to straight-line. Excellent regulation performance.
(5) Various kinds of materials, applicable to different medium.
(6) Strong wash and brush resistance and can fit to bad working condition.
(7) Center plate structure, small torque of open and close.
(8) Long service life. Standing the test of ten thousands opening and closing operation.
(9) Can be used in cutting off and regulation medium.


Cast Iron Wafer Butterfly Valve Technical Parameters:





Nominal Diameter(mm) Wafer 50-300 Flange 50~2000
Nominal Pressure(MPa) 0.6 1 1.6
Seal Test (MPa) 0.66 1.1 1.76
Strength Test (MPa) 0.9 1.5 2.4
Applicable Temperature Nitrile rubber:-40℃~90℃;Viton:-20℃~200℃
Applicable Medium Water,air,gas,oils and Weak corrosive fluid
Drive Mode Worm geaar,electric,pneumatic,manual



Electric Wafer Butterfly Valve Parts Material:





butterfly valve Parts Material
butterfly valve Body 304,WCB,QT450-10,HT200,HT250
butterfly valve Disc 304,WCB,QT450-10,HT200,HT250
butterfly valve Stem 2Cr13
butterfly valve Seal Ring Butyronitrile rubber
butterfly valve Packing Flexible graphite

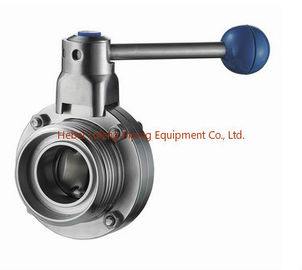

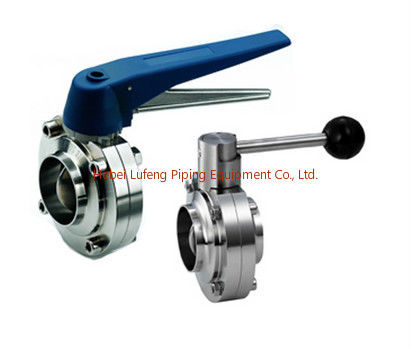

Factory direct sales 304 stainless steel lp butterfly valve 0Factory direct sales 304 stainless steel lp butterfly valve 1



Our Services

Low MOQ: We are always ready for providing the sample and producing some small orders, in order to meet the business well.

OEM Accepted: We can make the products with the client's demand standard or the custom requirement.

Complete Service: We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.

Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc.

Competitive Prices:We are the manufacturing company which not only has our own manufacturing workshop, but the trade company as well. We provide the straight factory price and service to our customer.

100% QC inspection Before Shipment.
