Product Details:
Payment & Shipping Terms:
|
Product Description
| Material | Black heart malleable iron | |
| British Standard | Threads :ISO 7/1 | |
| Dimension: BS EN 10242, BS 143&1256 | ||
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) | |
| Physical property | Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB | |
| Testing pressure | 2.5MPa, 100% test before shipment | |
| Working pressure | 1.6MPa | |
| Type | Banded without ribs, Beaded with ribs. | |
| Size | 1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6". | |
| Surface | Ø Galvanized | |
| Ø Normal black/Shining black | ||
| Series | Heavy, Standard, Medium, Light | |
| Model | Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets, Nipples, Hexagon etc. | |
| Related products | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Carbon steel butt-welding fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Grooved fittings | 12. Sanitary fittings, etc. | |
| Connection | Male, Female | |
| Shape | Equal, Reducing | |
| Certificate | BSI, ANAB, ISO9001,FM,UL | |
| Applications | Suitable for Pipe lines connect of water, steam, air, gas, oil and so on. | |
| Buyer’s drawings or designs are available. | ||

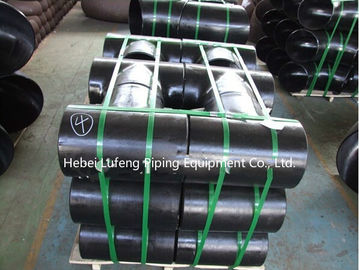

Packaging & Shipping
Packaging Details: wooden cases ,wooden pallet,plastic bag or as per customers' requirements
Delivery Detail: 30days/ customers request
Our Services
You should make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance, function, material compatibility, adequate ratings, proper installation, operation and maintenance are the responsibilities of the system designer and user.
From quote to delivery, we can provide the detailed support you need.
1. CAD drawing
2. P&ID
3. Component selection
4. material
5. Professional services such as bending and welding
6. Testing to guarantee the system
7. Professional packaging and delivery
FAQ
1. What is the acceptable MOQ?
For this tube fitting, our acceptable MOQ is 1pc. Any trial order in small quantity is welcome.
2. What is the Delivery time?
For samples,we usually have them in stock, so the delivery time will be quite short .
For normal order, the delivery time should be in 2 weeks.
3.What is the acceptable payment term?
T/T, Paypal ,Western Union, MoneyGram, L/C, D/A, D/P
Why choose us
1 Metal-to-metal seal connections, non-elastomeric seals were provided for leak-free connections.
2 Professional Team to keep good quality and offer the best solution.
3 100% inspection before shipment.
4 Gold supplier authenticated by ALIBABA. Safe and easy to buy from us.
