Product Description

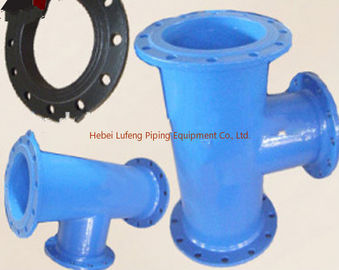

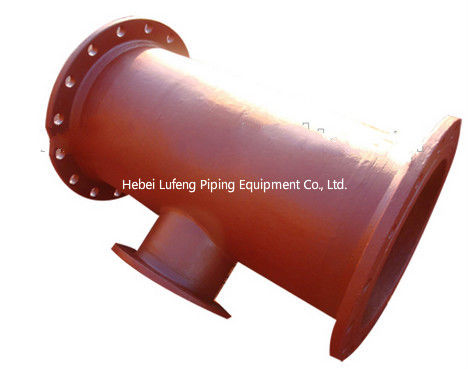

DN1000x800x1000mm Ductile Iron Pipe Fitting All flanged tee
Management Certification:ISO 9000/9001/9004/19011: 2000&SGS
1.size : DN50-DN2000 available with PN16 , PN10 or PN25
2.Standard : ISO2531/EN545/EN598/AWWA standard
3.Material : Ductile iron as specified in BS EN 545 and BS EN 598
Rubber NBR, SBR, EPDM according to ISO4633 / EN681.1
4.Color:Blue FBE / Epoxy Coating or according to customer's requirement.
5.Flange Joint: PN10/PN16/PN25
6.Coating:
Fusion bonded epoxy to 300 microns Dry Film Thickness Portland cement lining internally and zinc-rich paint with not less than 70 microns bitumen externally.
| Internal Coating | External Coating |
| cement mortar lining | zinc coating +bitumen painting |
| liquid epoxy painting | liquid epoxy painting |
| expoxy applied by FBE | expoxy applied by FBE |
| according to customers' requirements | according to customers' requirements |
| Nominal Diameter | L | H | Weight / kgs | |||
| DN | dn | PN10 | PN16 | PN25 | ||
| 500 | 100 | 1000 | 400 | 210 | 241 | 265 |
| 150 | 1000 | 400 | 215 | 244 | 268 | |
| 200 | 1000 | 400 | 242 | 244 | 271 | |
| 250 | 1000 | 400 | 228 | 258 | 289 | |
| 300 | 1000 | 500 | 235 | 263 | 292 | |
| 350 | 1000 | 500 | 239 | 268 | 303 | |
| 400 | 1000 | 500 | 242 | 276 | 311 | |
| 450 | 1000 | 500 | 249 | 284 | 322 | |
| 500 | 1000 | 500 | 252 | 297 | 332 | |
| 600 | 100 | 1100 | 450 | 301 | 340 | 352 |
| 150 | 1100 | 450 | 307 | 356 | 336 | |
| 200 | 1100 | 450 | 305 | 358 | 388 | |
| 250 | 1100 | 450 | 307 | 360 | 392 | |
| 300 | 1100 | 550 | 326 | 375 | 410 | |
| 350 | 1100 | 550 | 329 | 380 | 413 | |
| 400 | 1100 | 550 | 329 | 387 | 427 | |
| 450 | 1100 | 550 | 338 | 417 | 448 | |
| 500 | 1100 | 550 | 338 | 420 | 464 | |
| 600 | 1100 | 550 | 355 | 434 | 477 | |
| 700 | 100 | 600 | 390 | 240 | 263 | 328 |
| 150 | 600 | 395 | 242 | 265 | 331 | |
| 200 | 650 | 525 | 258 | 398 | 363 | |
| 250 | 720 | 525 | 300 | 322 | 391 | |
| 300 | 760 | 540 | 344 | 370 | 439 | |
| 350 | 830 | 530 | 337 | 363 | 436 | |
| 400 | 870 | 555 | 343 | 379 | 453 | |
| 450 | 920 | 560 | 370 | 401 | 477 | |
| 500 | 990 | 560 | 412 | 448 | 524 | |
| 600 | 1200 | 585 | 468 | 519 | 596 | |
| 700 | 1200 | 600 | 477 | 523 | 617 | |
Packaging & Shipping
Package: wooden case, wooden pallet with plastic layer
Delivery: within one Month or According to Client's Order Quantity
Our Services
1.Materials:The best raw materials
2.Shipment:The most convenient transport and prompt delivery.
3.Price:Competitive price with best service
4.Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test
5.Brand:Client's Brand Customization Allowable
6.Inspection:Support Client or The Third Party Inspection before Shipment
7.Contract Manufacturing:OEM Service Offered, Design Service Offered
