Specifications
PVC pipe reducer
1. Material: PVC, UPVC
2. Size: 20mm-400m
3. Color: grey, white
4. ISO4422:1996 Standard

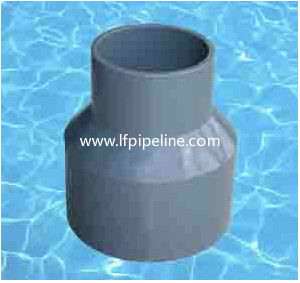

Large PVC Pipe Fittings Reducer
| ITEM | DETAILED DESCRIPTION |
| Product Name | PVC Pipes Reducer |
| Model No. | HSQY-RE-0000 |
| Band | |
| Standard | GB/T10002.1-2006 / ISO4422-3:1996 |
| Diameter | Outside Diameter 20mm to OD400mm |
| Working Pressure | 1.0Mpa (PN10, 10 bar, 150psi) |
| Material | PVC (100% New Material) |
| Color | The most common one is grey, and white one could be customized. |
| Type | with socket ends, the pipes will inset the reducer to work. |
| MOQ | we have a tatal amount of USD3000 as MOQ for one shipment for the fittings such as Reducer etc. |
| Application | for potable water supply, irrigation, etc. |
| Company Certification | ISO9001:2008 |
| Advantage | 100% New Material, Lead free, High Pressure, Corrosion resistance, Easy installation etc. |
| Test | Drop Test, Hydraulic test, Oven Test etc. |
| Packing | Cartons |
| Delivery time | Depends on your quantity, usually within 15 days after reveiving our doposit / down payment. |
| Place of origin | Cangzhou City, China (Mainland) |
SIZE
| CODE | SIZE | CODE | SIZE | CODE | SIZE |
| F0401 | 25 x 20 | F0423 | 110 x 50 | F0445 | 225 x 200 |
| F0402 | 32 x 20 | F0424 | 110 x 63 | F0446 | 250 x 110 |
| F0403 | 32 x 25 | F0425 | 110 x 75 | F0447 | 250 x 160 |
| F0404 | 40 x 20 | F0426 | 110 x 90 | F0448 | 250 x 200 |
| F0405 | 40 x 25 | F0427 | 125 x 63 | F0449 | 250 x 225 |
| F0406 | 40 x 32 | F0428 | 125 x 75 | F0450 | 280 x 250 |
| F0407 | 50 x 20 | F0429 | 125 x 90 | F0451 | 315 x 110 |
| F0408 | 50 x 25 | F0430 | 125 x 110 | F0452 | 315 x 125 |
| F0409 | 50 x 32 | F0431 | 140 x 90 | F0453 | 315 x 160 |
| F0410 | 50 x 40 | F0432 | 140 x 110 | F0454 | 315 x 200 |
| F0411 | 63 x 20 | F0433 | 160 x 75 | F0455 | 315 x 225 |
| F0412 | 63 x 25 | F0434 | 160 x 90 | F0456 | 315 x 250 |
| F0413 | 63 x 32 | F0435 | 160 x 110 | F0457 | 315 x 280 |
| F0414 | 63 x 40 | F0436 | 160 x 125 | F0458 | 355 x 200 |
| F0415 | 63 x 50 | F0437 | 160 x 140 | F0459 | 355 x 250 |
| F0416 | 75 x 32 | F0438 | 200 x 110 | F0460 | 355 x 315 |
| F0417 | 75 x 40 | F0439 | 200 x 125 | F0461 | 400 x 200 |
| F0418 | 75 x 50 | F0440 | 200 x 160 | F0462 | 400 x 250 |
| F0419 | 75 x 63 | F0441 | 200 x 180 | F0463 | 400 x 315 |
| F0420 | 90 x 50 | F0442 | 225 x 110 | F0464 | 400 x 355 |
| F0421 | 90 x 63 | F0443 | 225 x 125 | / | |
| F0422 | 90 x 75 | F0444 | 225 x 160 | ||
We are a professional manufacturer of UPVC Pipe, Pipe fittings and valves up to the DIN standard with ISO9001:2008 since 2005.
As for the pipe, ours are range from 20mm to 800mm.
As for the fittings, ours are range from 20mm to 800mm.
As for the valves, ours are range from 20mm to 630mm.
Products are of high quality and reasonable price, and of course with good service.
We sincerely hope to establish long time cooperation relationship with you and your inquiry will be replied within 1 working days.
