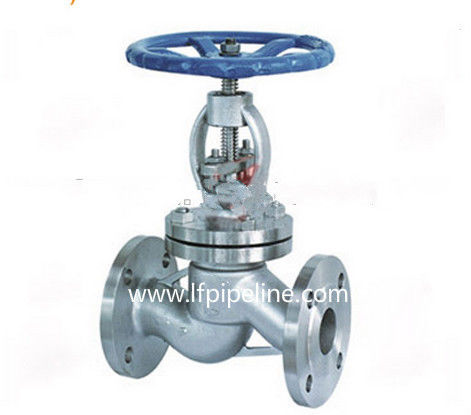

Flange Manual Globe Valve PN16 DN50

Name: Flange Manual Globe Valve PN16 DN50
Brand: Flange Manual Globe Valve PN16 DN50
SKU: Flange Manual Globe Valve PN16 DN50
Rating: 4.8 (138 reviews)

Large Image : Flange Manual Globe Valve PN16 DN50 Get Best Price

Product Details:

Place of Origin:	Cangzhou, China (Mainland)

Payment & Shipping Terms:

Packaging Details:	plastic bag+carton boxes+crate

Contact Now

Detailed Product Description

Product Description
Flange Manual Globe Valve PN16 DN50
Material Table

Name of Parts	ZG1Cr18Ni9Ti	ZG00Cr18Ni10	ZG1Cr18Ni12Mo2Ti	ZG00Cr17Ni14Mo2	WCB
Valve Body	ZG1Cr18Ni9Ti	ZG00Cr18Ni10	ZG1Cr18Ni12Mo2Ti	ZG00Cr17Ni14Mo2	WCB
Valve clack	ZG1Cr18Ni9Ti	ZG00Cr18Ni10	ZG1Cr18Ni12Mo2Ti	ZG00Cr17Ni14Mo2	1Cr13
Valve rod	ZG1Cr18Ni9Ti	00Cr18Ni10	1Cr18Ni12Mo2Ti	00Cr17Ni14Mo2	1Cr13
Padding	PTFE knit	PTFE knit	PTFE knit	PTFE knit	Graphite
Spacer	304+PTFE	304L+PTFE	316+PTFE	316L+PTFE	Graphite+304
Gland	ZG1Cr18Ni9Ti	ZG00Cr18Ni10	ZG1Cr18Ni12Mo2Ti	ZG00Cr17Ni14Mo2	WCB
Stuffing ring	1Cr18Ni9Ti	00Cr18Ni10	1Cr18Ni12Mo2Ti	00Cr17Ni14Mo2	1Cr13
Bolt	1Cr17Ni2	1Cr17Ni2	1Cr17Ni2	1Cr17Ni2	35CrMoA
Nut	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni9Ti	45

Dimensions of PN16 globe valve

	d	L	H	L1	H1	D2	I	D	C	n
PN16DN15	15	130	180	90	163	100	13	95	65	4
PN16DN20	20	150	180	95	163	100	13	105	75	4
PN16DN25	25	160	180	100	163	100	13	115	85	4
PN16DN32	32	180	230	105	210	125	13	140	100	4
PN16DN40	40	200	245	115	227	160	15	150	110	4
PN16DN50	50	230	268	125	239	160	16	165	125	4
PN16DN65	65	290	291	145	264	180	20	185	145	4
PN16DN80	80	310	324	155	285	180	26	200	160	8
PN16DN100	100	350	354	175	306	200	36	220	180	8
PN16DN125	125	400	411	200	351	200	51	250	210	8
PN10DN150	150	480	465	225	393	250	56	285	240	8
PN10DN200	200	600	603	275	523	355	72	340	295	8
PN16DN200	200	600	603	275	523	355	72	340	295	12

Flange Manual Globe Valve PN16 DN50 0
Packaging & Shipping
Package:plastic wrap+carton+crate
Single valve is packed with foam plastic bag.
Packed in Plywood Case on Pallet and Lined with Single.
We can pack according to specific customer requests.
Delivery:truck+container+sea transportation
