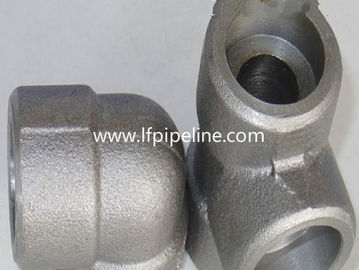

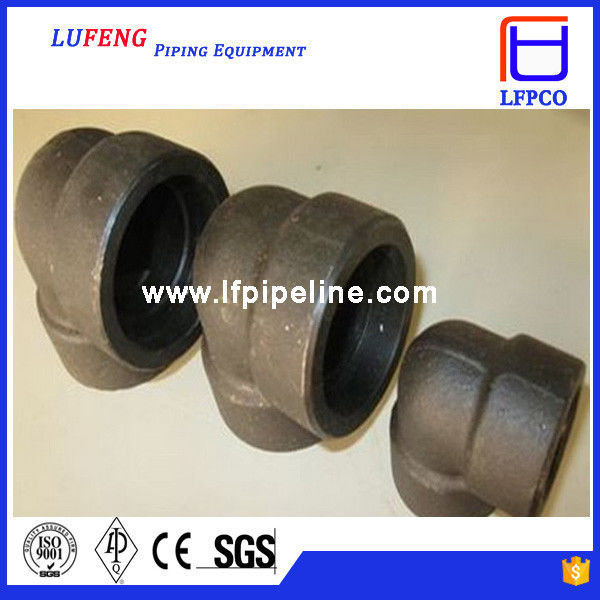

Forged Steel High Pressure Socket Weld Pipe Fitting 90 degree elbow
Product Description
| Name: | Forged Steel High Pressure Socket Weld Pipe Fitting 90 degree elbow | |
| Material: | Carbon Steel: | 1.ASTM A-234 (WPB,WPC) |
| 2.EN 10216-2(P235GH,P265GH) | ||
| 3.EN10222-2(P245GH,P280GH) | ||
| 4.NF A49-213 (TU42C,TU48C) | ||
| Low Alloy Steel: | 1.ASTM A-420(WPL6) | |
| 2.ASTM A-234(WP11,WP22,WP5) | ||
| 3.ASTM A-860(A860-WPHY52) | ||
| Stainless Steel: | 1.ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321,WP321H,WP347) | |
| 2.EN10216-5(X2CrNiN18-10(1.4311) | ||
| 3.X5CrNi18-10(1.4301) | ||
| 4.X5CrNiMo17-122(1.4401) | ||
| 5.X2CrNiMo17-12-2(1.4404) | ||
| Standard: | ASTM, ASME,DIN,JIS,API,GB,ISO | |
| Certifications: | ABS,CC,TUV,GL ,BV,ISO14001,ISO9001,OHSMS | |
| Connection type: | BW,SW,THD. | |
| Surface treatment: | Anti-corrosion, galvanized… | |
| Size: | (1/2″~92″) DN15~DN2400 | |
| Customizes Size: | Non-standard size can be customized as per customer’s request. | |
| Wall thickness: | SCH5S~SCH160 STD XS XXS | |
| Testing: | Chemical Component Analysis, Mechanical Properties(Ultimate tensile strength, Yield strength, Elongation),Technical,Properties(Flattening Test, Bending Test, Blow Test, Impact Test),Exterior Size Inspection, Hydrostatic Test, X-ray test. | |
| Testing Report: | SGS,BV etc. 3rd Party Testing Report is available. | |
Remarks :
1) Normal size above are provided for you reference .
2) Custom made as customers' requirements for special Size .
Packing & Shipping
1) Packing Method:
Normal packing:plastic film or bubble paper wrapped on product's surface ,protect ends with caps,pack with wooden case or load on fumifation plywood pallet .
Custom made as customers request .
2) Shipping Way:
Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
As per customer's request.
