Features
Material:Stainless Steel 304,316
Applicable Medium: Oil, water, gas and other non corrosive or corrosive medium
safe, reliable and leak-proof connection.
Easy to assemble and disassemble
Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads
Specifications

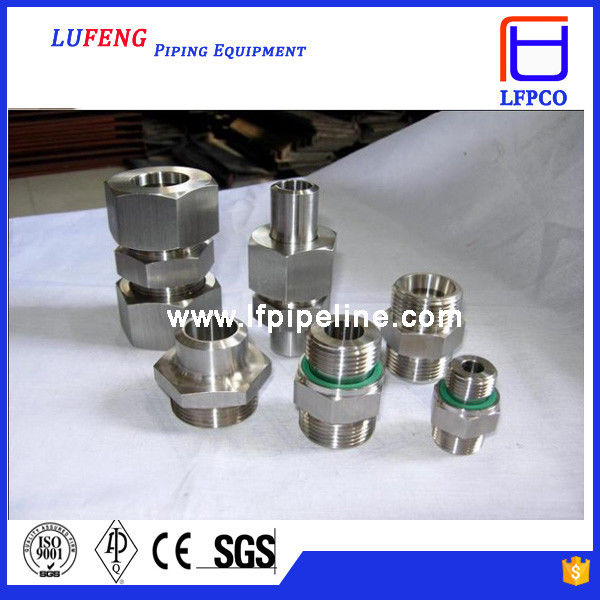

Socket welding DSW bellmouth pipe fitting
-easy up to make joint
-Quality management system to ISO 9001
-High surfa
Socket welding DSW bellmouth pipe fitting
Specification
| Type | Tube socket Weld connector |
| Sizes | Fractional: 1/8 to 1 in. |
| Metric: 3.17 to 25.04 mm | |
| Maximum Operating Pressure | 12,000 psig (825 bar) @ 100° F (38° C) |
| @ 100° F (38° C) | |
| Temperature Range | -325° F to 1200° F |
| (-198° to 648° C) | |
| Materials | Stainless steel, carbon steel, brass, Alloy 400, UNS N10276. Other materials are available on request. |
| Adapters | Port connectors, , socket weld, tube stub, AN fittings, NPT thread, SAE thread, BSP threaded (BSPP and BSPT), butt weld, and socket weld |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, connectors, adapters, reducers |
| Special Fittings | Bulkhead, bore-through, dielectric fittings and adapters, calibration fittings, |
| mud dauber, tube inserts |
