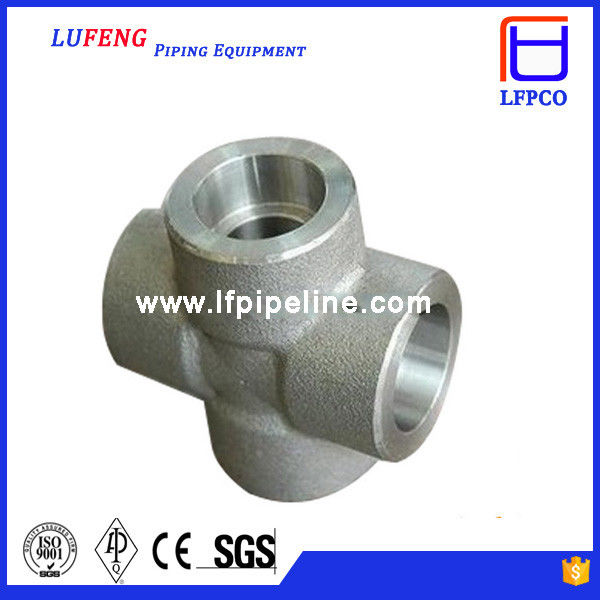

3000 LBS Carbon Steel Forged Pipe Fitting Socket Weld Cross
| TYPE | A:ELBOW,TEE,COUPLING,HALF COUPLING,CAP,PLUG,BUSHING,UNION, |
| OUTLET,SWAGE NIPPLE,BULL PLUG,REDUCER INSERT AND HEX | |
| NIPPLE,STREET ELBOWS,BOSS...ETC. | |
| B:SOCKET-WELD,THREADED(NPT or PT TYPE),BUTT-WELDING, | |
| SIZE | NPS 1/8"-4"; DN6-100 |
| RATING | PRESSURE:THREADED END -2000/3000/6000LBS. |
| SOCKET-WELD END -3000/6000/9000/LBS. | |
| BUTT WELD END -SCH40/SCH80/SCH160/XXS. | |
| SPECIFICATIONS | A.DIM.SPEC.:ASME B16.11-2009(REVISION OF ASME B16.11-2005); |
| STANDARD | MSS SP- 79,83,95,97and BS3799. |
| B.ASTM A105,A350 LF2,A106,A312,A234,A403,ASTM A182(F304, | |
| F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,91). | |
| C.SIZE of RAW MATERIAL:DIA.19-85MM ROUND BAR. | |
| MARKING | A.CARBON and ALLOY STEEL:MARKED BY STAMPING. |
| B.STAINLESS STEEL:MARKED BY ELECTRO-ETCHED,JET PRINTED or | |
| STAMPING. | |
| C.3/8"UNDER:BRAND ONLY. | |
| D.1/2"to 4":MARKED WITH BRAND,MATERIAL,HEAD CODE, | |
| B16(FOR ASME B16.11PRODUCT),RATING AND SIZE. | |
| E:AS THE REQUIREMENT of CUSTOMER. | |
| PACING | IN WOODEN CASES or PALLETS,or AS PER CLIENTS’ REQUIREMENTS. |
| APPLICATION | PETROLEUM,CHEMICAL,MACHINERY,ELECTRIC POWER,SHIPBULING, |
| CONSTRUCTION,ECT. | |
| Special design available as the requirement of customers | |
