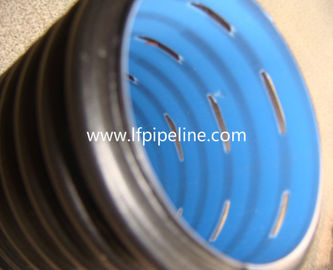

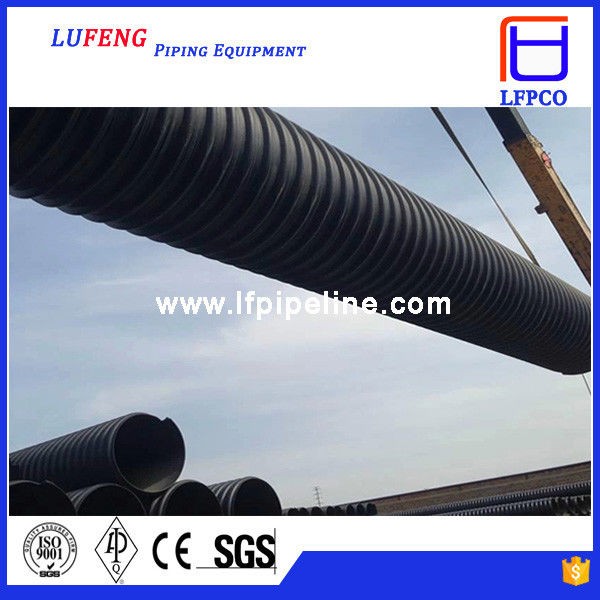

HDPE pipe for water supply
Product Features:
Material: high quality PE80 or PE100
Sizes: 20 to 1600mm
Pressure Rating: 0.4MPa, 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa
Colors: blue, black or other colors on request
Connection: socket fusion joint, butt fusion joint, electro fusion joint, flanged joint
Standard: ISO 4429 and BS6920
Certification: ISO9001, ISO14001, OHSAS18001
Applications: water supply, industrial liquids transportation and sewage treatment
Porudct size:
| PE100 Water Supply Pipe | |||||
| SDR26, PN0.6MPa | SDR21, PN0.8MPa | SDR17, PN1.0MPa | SDR13.6, PN1.25MPa | SDR11, PN1.6MPa | |
| dn | en | en | en | en | en |
| 20 | 2.3 | ||||
| 25 | 2.3 | ||||
| 32 | 3 | ||||
| 40 | 3.7 | ||||
| 50 | 4.6 | ||||
| 63 | 4.7 | 5.8 | |||
| 75 | 4.5 | 5.6 | 6.8 | ||
| 90 | 4.3 | 5.4 | 6.7 | 8.2 | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 50.8 | |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | ||
| 800 | 30.6 | 38.1 | 47.4 | ||
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 46.3 | 57.2 | |||
| 1400 | 53.9 | 66.8 | |||
| 1600 | 61.6 | ||||
