Product Description

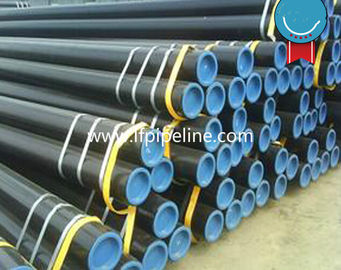

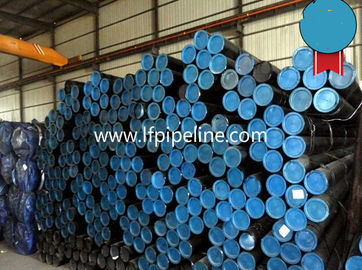

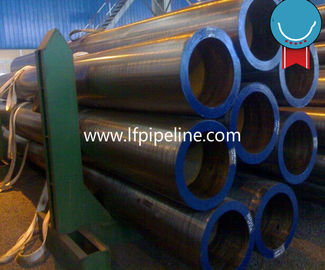

API 5L/A53/A106 B Seamless Carbon Steel Pipe for High-Temperature Service
Description:
1.Standards: ASTM A106 (ASME SA106)
2.Products mainly used: apply to bending, curling and similar forming process.
3.The main products of steel / steel grade: Gr.A; Gr.B; Gr.C.
4.Specifications: diameter: 13.7-610.0 mm to 114.3 mm thickness: 2.24 to 30.96mm; Length: 5.8/6 meter above, and, in accordance with customer demand, supply and other specifications of steel pipe.
5.Chemical composition and mechanical properties:
| Steel Type | CHEMICAL COMPOSITION | CRITERIA | MECHANICAL PROPERTIES | |||||||
| C % | Mn % | Si % | S % | P % | Normial Yield Strength Ys(Mpa) | Norminal Ultimate Tensile Strength Us(Mpa) | Elongation (%) | |||
| 1 | 106 B | ≤0.30 | 0.29-1.06 | ≥0.10 | ≤0.035 | ≤0.035 | ASTM A106/M | ≥240 | ≥415 | ≥30 |
Tolerance:
| Pipe Type | Pipe Sizes | Tolerances | |
| Cold Drawn/ Hot Rolled | O.D | ≤48.3mm | ±0.40mm |
| >48.3-114.3mm | ±0.79mm | ||
| >114.3-219.1mm | +1.59 -0.79mm | ||
| >219.1-457.2mm | +2.38 -0.79mm | ||
| W.T | ±12.5% | ||
Size List:
| These price are just for your reference, please contact us to confirm the newest price! (^_^) | ||||||||||
| SIZE | O.D | SCH40(6m/5.8m) | SCH80(6m/5.8m) | SCH160(6m/5.8m) | ||||||
| (inch) | (mm) | W.T (mm) | Weight/6m (kg) | FOB Tianjin/TON | W.T (mm) | Weight/6m (kg) | FOB Tianjin/TON | W.T (mm) | Weight/6m (kg) | FOB Tianjin/TON |
| 1/2 | 21.3 | 2.77 | 7.62 | $984 | 3.73 | 9.72 | $984 | 4.78 | 11.7 | $1,049 |
| 3/4 | 26.7 | 2.87 | 10.14 | $910 | 3.91 | 13.2 | $910 | 5.56 | 17.4 | $1,016 |
| 1 | 33.4 | 3.38 | 15 | $762 | 4.55 | 19.44 | $762 | 6.35 | 25.44 | $803 |
| 1-1/4 | 42.2 | 3.56 | 20.34 | $705 | 4.85 | 26.82 | $705 | 6.35 | 33.66 | $738 |
| 1-1/2 | 48.3 | 3.68 | 24.3 | $705 | 5.08 | 32.46 | $705 | 7.14 | 43.5 | $738 |
| 2 | 60.3 | 3.91 | 32.64 | $705 | 5.54 | 44.88 | $705 | 8.74 | 66.66 | $730 |
| 2-1/2 | 73 | 5.16 | 51.78 | $672 | 7.01 | 68.46 | $672 | 9.53 | 89.52 | $697 |
| 3 | 88.9 | 5.49 | 67.74 | $656 | 7.62 | 91.62 | $656 | 11.13 | 128.1 | $680 |
| 3-1/2 | 101.6 | 5.74 | 81.42 | $672 | 8.08 | 111.78 | $672 | |||
| 4 | 114.3 | 6.02 | 96.42 | $652 | 8.56 | 133.92 | $648 | 13.49 | 201.24 | $672 |
| 5 | 141.3 | 6.55 | 130.62 | $648 | 9.53 | 185.82 | $648 | 15.88 | 294.66 | $672 |
| 6 | 168.3 | 7.11 | 169.56 | $648 | 10.97 | 255.36 | $648 | 18.26 | 405.36 | $705 |
| 8 | 219.1 | 8.18 | 255.3 | $652 | 12.7 | 387.84 | $680 | 23.01 | 667.62 | $721 |
| 10 | 273 | 9.27 | 361.86 | $680 | 15.09 | 576.06 | $684 | 28.58 | 1033.98 | $721 |
| 12 | 323.8 | 10.31 | 478.38 | $680 | 17.48 | 792.48 | $684 | 33.32 | 1432.56 | $754 |
| SIZE | O.D | STD(6m/5.8m) | SCH40(6m/5.8m) | SCH80(6m/5.8m) | ||||||
| (inch) | (mm) | W.T (mm) | Weight/6m (kg) | FOB/TON | W.T (mm) | Weight/6m (kg) | FOB/TON | W.T (mm) | Weight/6m (kg) | FOB/TON |
| 14 | 355.6 | 9.53 | 487.98 | $762 | 11.13 | 567.3 | $754 | 19.05 | 948.61 | $762 |
| 16 | 406.4 | 9.53 | 559.62 | $762 | 12.7 | 739.8 | $762 | 21.44 | 1221.19 | $770 |
| 18 | 457 | 9.53 | 630.96 | $795 | 14.27 | 934.8 | $795 | 23.83 | 1527.3 | $811 |
| (PACKAGE: PLASTIC CAPS, BLACK PAINT, STEEL BELT BALING) | ||||||||||
