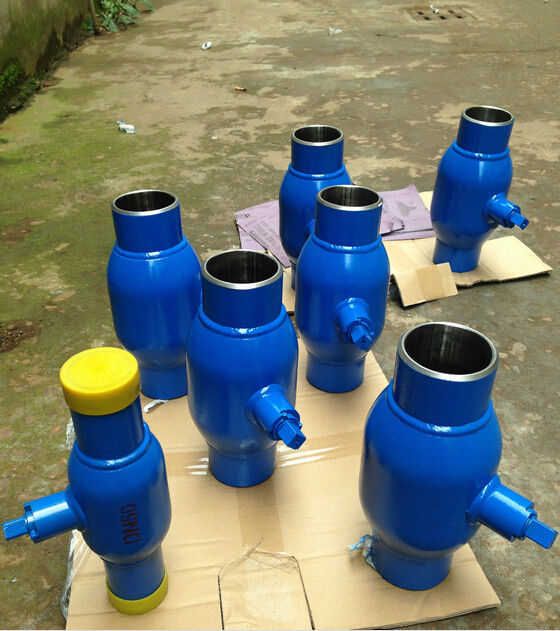

Fully Welded Ball Valve Manufacturer Landee supplies Fully Welded Ball Valves with Flanged and Butt-welded Connection, trunnion mounted ball type, , Available in Size of 1/2 to 36-inch.
Key Specifications / Features
Ball Valve type: trunnion mounted ball
Valve Body materials: A105, LF2, F11, F22, F304, F304L, F316 and F316L
Manufacturing standards: API, ANSI, BS, DIN and JIS
Pressure: ANSI class 150 to 2500 (PN1.6 to 42MPa)
Applicable temperature: -196 to 650 degrees Celsius
Connection: flanged and butt-welded
Valve Size range: 1/2 to 36 inches (15 to DN900mm)
Products Related to Fully Welded Ball Valves
reduced fully welded ball valves
Flange full welded ball valve is specially developed according to user requirements; flange full welded ball valve, can be single welding, and it can be on the other side in the flange connection on the other side.
The design of single flange full welded ball valve is piping installation after other valves, which cannot be directly installed all welded ball valve. According to this situation, our factory do the research on the single flange full welded ball valve.The end of the flange can be connected with other valves, or connected with pipe flange; and the other end is connected in welding way, which is convenient to replace the valve flange end.
The structure and design:
flange full welded ball valve is completely designed and manufactured according to the API6D to prevent anti-static and fire. Stem is extended according to the requirements of customers; the body sphere of metal parts are all made of forging high quality materials, to guarantee the quality of the ball valve and intensity. The sphere is fixed with stuffing box or support plate. Stuffing box or support plate fixed ball can eliminate the force from medium in the sphere of the bending moment on the valve stem, so the stem withstand torque. It makes valve movements smooth, switching torque small, and easy to operate. Seal is adopted the unique two soft seal and metal sealing which is formed three sealing. It ensures reliable sealing and the security. It has the advantage of long operating life, and free of maintenance.
In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.
Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.
City gas: gas output pipeline, the trunk and the regional supply, etc.
Central heating: large heating equipment output pipeline, trunk and feeder.
Heat exchangers: piping and the opening and closing of each circuit.
Steel mills: all kinds of fluid pipes, exhaust pipes, gas, and the heat supply, fuel supply line.
All kinds of industrial equipment: all kinds of pipes, all kinds of industrial gas and heat pipe heat treatment.
We invest 200 million yuan to introduce two Japan casting automatic production lines and five China-made semi-automatic casting production lines which has formed our unique advantage, it was unprecedented in the same industry.
