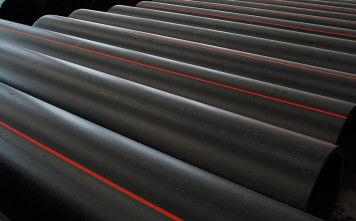

HDPE mining pipe

HDPE mining pipe
HDPE mining pipe

Large Image :  HDPE mining pipe Get Best Price

Product Details:
Contact Now
Detailed Product Description

Product name:HDPE mining pipe
Item:PIPE003
Details:
HDPE Mine Pipe Applications:
The pipes can be used in mines for water supply, air exhaust, air compression, concrete spray and methane drainage.

HDPE Mine pipe is produce by special inflaming retarding and antistatic performance HDPE material.
At the same time is has the other advantage of HDPE pipe, such as corrosion resistance, long service time, light weight and easy for transport and installation.

Dn PN6 PN8 PN10 PN12.5 PN16
SDR26 SDR21 SDR17 SDR13.6 SDR11
32 　 　 　 　 3
40 　 　 　 　 3.7
50 　 　 　 　 4.6
63 　 　 　 4.7 5.8
75 　 　 4.5 5.6 6.8
90 　 4.3 5.4 6.7 8.2
110 4.2 5.3 6.6 8.1 10
125 4.8 6 7.4 9.2 11.4
140 5.4 6.7 8.3 10.3 12.7
160 6.2 7.7 9.5 11.8 14.6
180 6.9 8.6 10.7 13.3 16.4
200 7.7 9.6 11.9 14.7 18.2
225 8.6 10.8 13.4 16.6 20.5
250 9.6 11.9 14.8 18.4 22.7
280 10.7 13.4 16.6 20.6 25.4
315 12.1 15 18.7 23.2 28.6
355 13.6 16.9 21.1 26.1 32.2
400 15.3 19.9 23.7 29.4 36.3
450 17.2 21.5 26.7 33.1 40.9
500 19.1 23.9 29.7 36.8 45.4
560 21.4 26.7 33.2 41.2 50.8
630 24.1 30 37.4 46.3 57.2
710 27.2 33.9 42.1 52.2  --
800 30.6 38.1 47.4 58.8  --
900 34.4 42.9 53.3  --  --
1000 38.2 47.7 59.3  --  --
