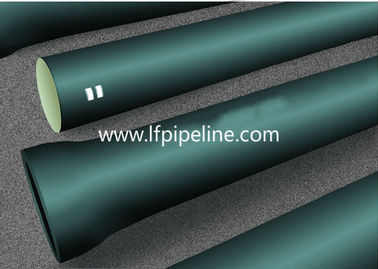

drinking water supply ductile iron pipe

Ductile Iron Pipes

Outer coating of ductile iron pipes

The external material of a pipe is covered with protective zinc metal and final protection coating according to ISO 8179

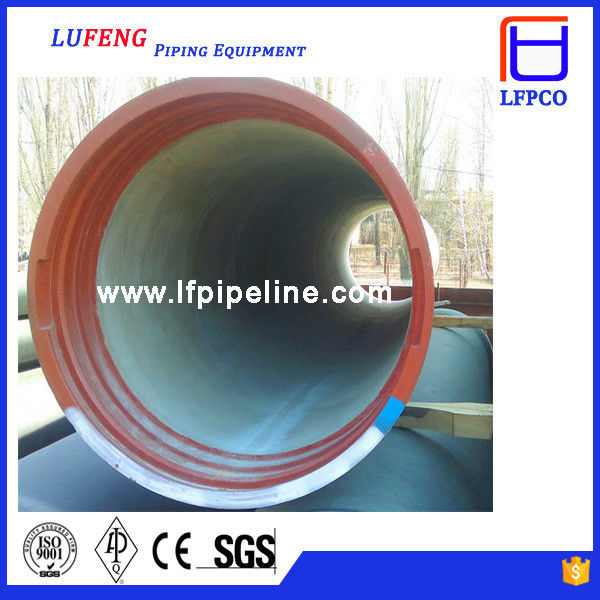

Internal ductile iron pipe lining

The inner surface of the pipe may have cement mortar lining (CML). Thickness and properties are according to ISO 4179.

The unique properties of the cement mortar lining lie in both passive and active protective effect.

in case of agressive soil or transported liquid other types of coatings can be used. It is recommended to consult the manufacturer on their application.

Range of joints

Socket joint, with rubber gasket for use with the operating pressure from 3.0 to 6.4 MPa (depends on diameter) for pipelines DN 80-1000 mm

Joint

Restrained socket joint with rubber gasket for use with the operating pressure from 2.5 to 8.8 MPa (depends on diameter) for pipelines DN 80-500 mm

Joint

Restrained socket joint with rubber gasket for use with the operating pressure from 1.6 to 3.2 MPa (depends on diameter) for pipelines DN 600-1000 mm
