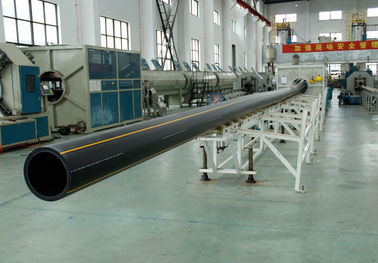

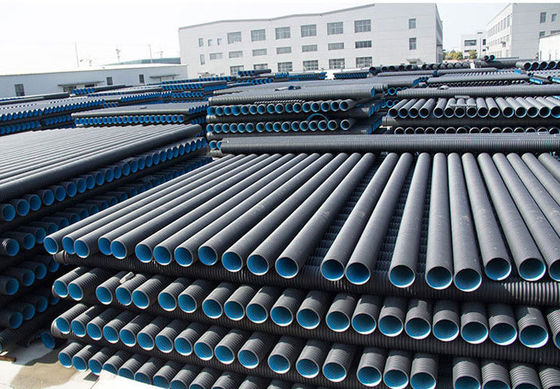

20-1600mm/PN6-16/quality products full form hdpe pipe
| OD | SDR26(PN0.6) | SDR21(PN0.8) | SDR17(PN1.0) | SDR13.6(PN1.25) | SDR11(PN1.6) |
| Thickness(mm) | Thickness(mm) | Thicknes (mm) | Thickness (mm) | Thickness(mm) | |
| 20 | 1.9 | ||||
| 25 | 1.9 | 2.3 | |||
| 32 | 2.4 | 3 | |||
| 40 | 2.4 | 2.9 | 3.7 | ||
| 50 | 3 | 3.7 | 4.6 | ||
| 63 | 3 | 3.8 | 4.7 | 5.8 | |
| 75 | 3.6 | 4.5 | 5.6 | 6.8 | |
| 90 | 4.3 | 5.4 | 6.7 | 8.2 | |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | |
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 45.9 | 57.2 |
Our Services
1, Material: 100% new material.
2, Standard: ISO/GB
3, Specification: 20~1600mm
4, Colors: Black
5, Honour: China honor brand
6, Factory: 150 thousand Square meters, 400 employees.
7, Exclusive distributor acceptable .
