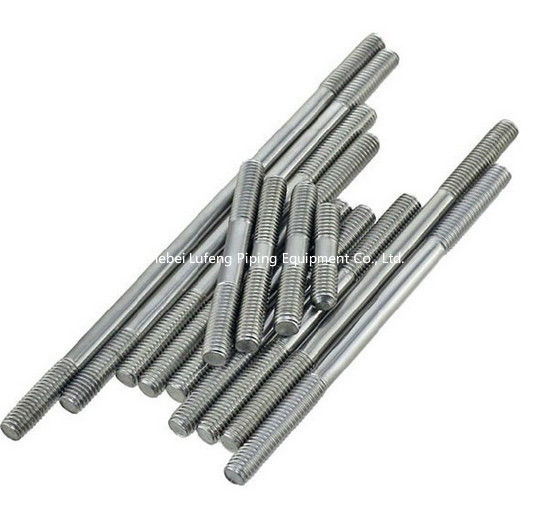

Double Ended Screw Bolt Stud Bolt

Double Ended Screw Bolt Stud Bolt

A threaded rod, also known as a stud, is a relatively long rod that is threaded on both ends; the thread may extend along the complete length of the rod. They are designed to be used in tension. Threaded rod in bar stock form is often called all-thread.
Studs may have a drive slot in one end to facilitate installing the stud.
For studs that are not completely threaded, there are two types of studs: full-bodied studs, and undercut studs. Full-bodied studs have a shank equal to the major diameter of the thread. Undercut studs have a shank equal to the pitch diameter of the screw thread. Undercut studs are designed to better distribute axial stresses. In a full-bodied stud the stresses are greater in the threads than in the shank.
Undercut studs are only required in applications where the stud is exposed to fatigue. Cut threads are entirely suitable for many applications, even when rolled threads might be slightly stronger. Mass-produced fasteners (standard bolts and studs) are usually rolled, but jobbed parts with custom features and small lot sizes are likely to be cut.
Undercut studs (rolled thread) are also stronger because the metal is "rolled" up to the major diameter, not removed. This preserves the grain of the steel, and in some cases even enhances it. Full bodied studs (cut thread) are weaker because metal is removed to create the thread, disturbing the grain of the steel.

Diameter: According customers’ requirements.
Head Type: Hex/hexagon head, Hex washer head, Slotted hex head, Flat head, Flat trim head, Flat under cut head, Round head, Round countersunk head, Round washer head, Pan head, Oval head, Oval undercut head, Oval trim head, Fillster head, Flat fillster head, Cheese head, Button head, Sockent/Allen head(socket head cap screw), Torx head, 12 pint head, Mushroom head carriage bolt, Hex head flange bolt, Binding head, Square head, Square countersunk head, Square(set screw)head, Truss head,
Available Materials: iron, carbon steel, stianless steel, Steel,aluminum,brass,copper and etc.
Heat Treatment: Tempering, Hardening, Spheroidzing, Stress Relieving.
Surface Finish: Zn- Plated, Ni-plated, Passivated, Tin-plated, Sandblast and Anodize, Chrome plated. Polish, Electro Painting, Black Anodize, Plain, Chrome plated, Hot Deep Galvanize(H. D. G. )
Standard: GB standard is MENU’S normal standard. Any other standard can be customized. Such like, DIN( With in the range of M20 is standard, others need to customize.), JIS, ANSI, BSW, ISO and etc.
Grade:4.8-14.9 is acceptable.
Sample: Standard GB sample can be provided for free and customized sample should be charged pertinently. Freight of the sample is charged.
MOQ: 1000PCS/Box. Customized is negotiable.Fl

Professional Manufacturer: All of our hexagon flange nuts are designed and manufactured according to buyers’ specification and performance.
Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective: Competitive prices with factory directly supply
Perfect fastening solution with 20 years experiences to solve your problem: Wide range of parts selection.
Customized Ideal Fasteners: customized services according to the samples and drawings offered.
