Product Details:
Payment & Shipping Terms:
|
Product specification

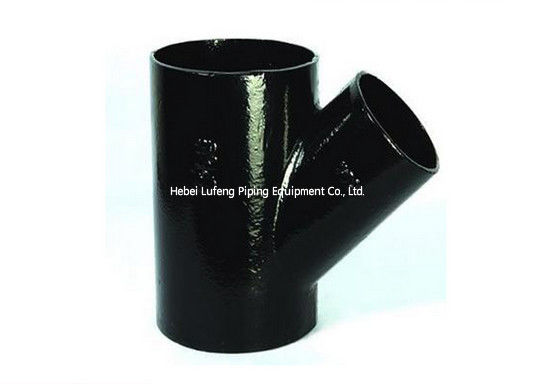

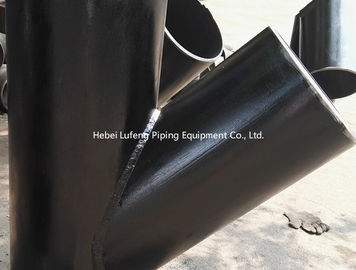

| Name: | 45 degree y branch pipe fitting lateral tee welding reducing tee unequal tee | |
| Material: | Carbon Steel: | 1.ASTM A-234 (WPB,WPC) |
| 2.EN 10216-2(P235GH,P265GH) | ||
| 3.EN10222-2(P245GH,P280GH) | ||
| 4.NF A49-213 (TU42C,TU48C) | ||
| Low Alloy Steel: | 1.ASTM A-420(WPL6) | |
| 2.ASTM A-234(WP11,WP22,WP5) | ||
| 3.ASTM A-860(A860-WPHY52) | ||
| Stainless Steel: | 1.ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321,WP321H,WP347) | |
| 2.EN10216-5(X2CrNiN18-10(1.4311) | ||
| 3.X5CrNi18-10(1.4301) | ||
| 4.X5CrNiMo17-122(1.4401) | ||
| 5.X2CrNiMo17-12-2(1.4404) | ||
| Standard: | ASTM, ASME,DIN,JIS,API,GB,ISO | |
| Certifications: | ABS,CC,TUV,GL ,BV,ISO14001,ISO9001,OHSMS | |
| Connection type: | BW,SW,THD. | |
| Surface treatment: | Anti-corrosion, galvanized… | |
| Size: | (1/2″~92″) DN15~DN2400 | |
| Customizes Size: | Non-standard size can be customized as per customer’s request. | |
| Wall thickness: | SCH5S~SCH160 STD XS XXS | |
| Testing: | Chemical Component Analysis, Mechanical Properties(Ultimate tensile strength, Yield strength, Elongation),Technical,Properties(Flattening Test, Bending Test, Blow Test, Impact Test),Exterior Size Inspection, Hydrostatic Test, X-ray test. | |
| Testing Report: | SGS,BV etc. 3rd Party Testing Report is available. | |
To control and guarantee products qualit .We will test products in each process of
manufactuing
A Raw material inspection:
dimension and tolerance check, appearance quality check, mechanical properties testing, weight check and raw material's quality assurance certificate check
B Semi-finished goods inspection:
dimension and tolerance check, physical and chemical inspection, leakage magnetism and ultrasonic inspection
C Finished goods inspection:
dimension and tolerance, appperance quality check and mechanical properties testing
D Inspection before ex-factory:
We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.
Packing & Shipping
1) Packing Method:
Normal packing:plastic film or bubble paper wrapped on product's surface ,protect ends with caps,pack with wooden case or load on fumifation plywood pallet .
Custom made as customers request .
2) Shipping Way:
Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
As per customer's request.
What can I do for you?
A. Stable quality—with advanced equipments and all raw materials comes from stat-owned mill in China.
B. Competitive price—Not cheapest but the lowest at the same quality.
C. Good service—one-stop service, we can supply the steel pipe and pipe fittings for oil and gas industry.
D. Delivery time—on-time delivery, lots of stock for standard size pipes.
E. Customized ,small/trail order and mixed order are welcomed.
