Product Description

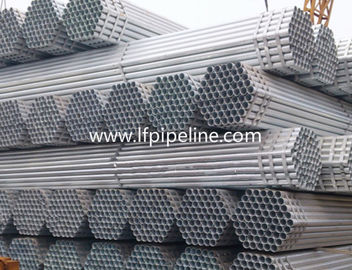

| Product Name: | Hot dipped galvanized steel pipe | |
| Size: | OD | 17-273mm (3/8"-10") |
| Wall Thickness | 0.5-10.0mm | |
| SCH30,SCH40,STD,XS,SCH80,SCH160,XXS etc. | ||
| Zinc Coating | Z40-500g/m2 | |
| Ends | 1) Plain | |
| 2) Beveled | ||

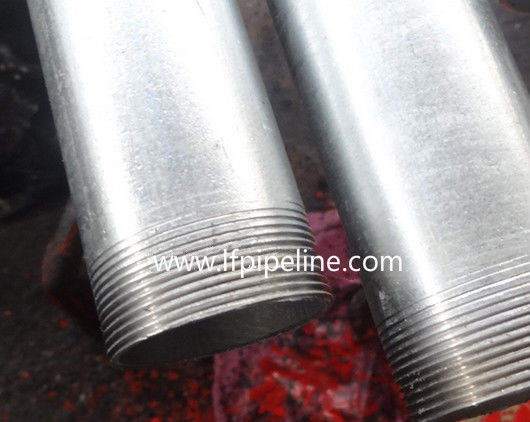

| 3) Thread with Coupling or cap | ||
| Surface | Galvanized | |
| Section shape | Round/Square/Rectangular | |
| Package | 1) Big OD: in bulk | |
| 2) Small OD: packed by steel strips | ||
| 3) Woven cloth with 7 slats, | ||
| 4) Plastic bags | ||
| 5) As per customer's option, | ||
| 6) For 20" container the max length is 6m; For 40" container the max length is 12m. | ||
| 7) We can load 25tons to 27tons per container. | ||
| Application | 1) Low pressure liquid delivery such as water, Fluid Pipe, water/oil/gas pipe, | |
| conduit pipe, scaffolding pipe | ||
| 2) Structure pipe in constructions, Bridge, highway, building materials, | ||
| 3) Windows of model steel door, fence, | ||
| 4) Heating facilities. | ||
Specs of GI steel pipe
| Specification | OD mm | Thickness | Min thickness | Welded pipe | Galvanized pipe | |||
| mm | mm | (6m) | (6m) | |||||
| Nominal pipe | inch | kg/m | Pcs / kg | Kg/m | Pcs/kg | |||
| size | ||||||||
| DN15 | 1-2 | 21.3 | 2.8 | 2.45 | 1.28 | 7.68 | 1.357 | 8014 |
| DN20 | 3-4 | 26.9 | 2.8 | 2.45 | 1.66 | 9.96 | 1.76 | 10.56 |
| DN25 | 1 | 33.7 | 3.2 | 2.8 | 2.41 | 14.46 | 2.554 | 15.32 |
| DN32 | 1.25 | 42.4 | 3.5 | 3.06 | 3.36 | 20.16 | 3.56 | 21.36 |
| DN40 | 1.5 | 48.3 | 3.5 | 3.06 | 3.87 | 23.22 | 4.1 | 24.6 |
| DN50 | 2 | 60.3 | 3.8 | 3.325 | 5.29 | 31.74 | 5.607 | 33.64 |
| DN65 | 2.5 | 76.1 | 4 | 3.5 | 7.11 | 42.66 | 7.536 | 45.21 |
| DN80 | 3 | 88.9 | 4 | 8.38 | 50.28 | 8.88 | 53.28 | |
| DN100 | 4 | 114.3 | 4 | 10.88 | 65.28 | 11.53 | 69.18 | |
| DN125 | 5 | 140 | 4.5 | 15.04 | 90.24 | 15.942 | 98.65 | |
| DN150 | 6 | 168.3 | 4.5 | 18.18 | 109.08 | 19.27 | 115.62 | |
| DN200 | 8 | 219.1 | 6.0 | 31.53 | 189.18 | |||
Business Scope
• Steel pipe: Black pipe, Galvanized steel pipe, Round pipe, Square pipe, Rectangular pipe, Spiral pipe, etc
• Steel sheet/coil: Hot/Cold rolled steel sheet/ coil, Galvanized steel sheets/coil, PPGI, Checkered sheet, corrugated steel sheet, etc;
• Steel beam: Angle beam, H beam, I beam, C lipped channel, U channel, Deformed bar, Round bar, Square bar, Cold drawn steel bar, etc
