Product Description

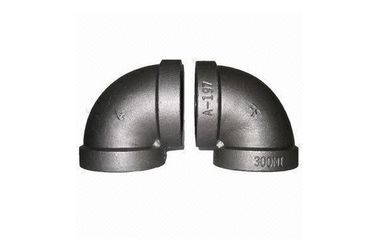

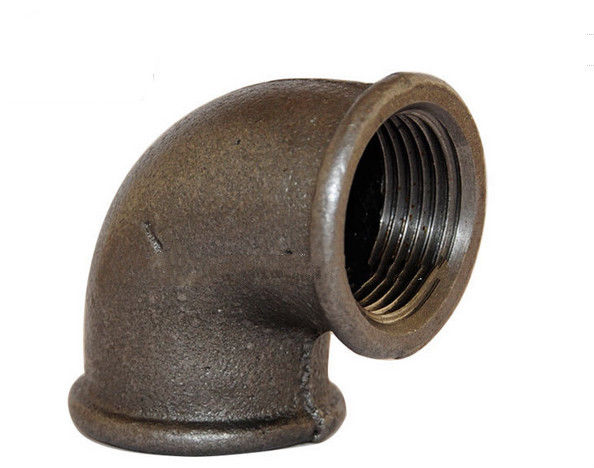

High Quality cast iron pipe fitting elbow with Trade Assurance
| Product Item | Malleable iron pipe fittings: elbow, tee, socket, bushing, reducer, bend, nipple, union, cross, flange, plug, backnut, cross over, round cap etc. |
| Material | Malleable cast iron |
| Technics | Casting |
| Size | 1/8"-6" |
| Edges | Banded, beaded or plain; with or without Ribs. |
| Thread Standard | ANSI: American Standard |
| Materials: ANSI/ASME/A197-79 | |
| Dimensions: ANSI/ASME B16.3-85 | |
| Threads: ANSI/ASME B1.20.1 | |
| BS: Brithish Standard | |
| Materials: ISO5922 | |
| Dimensions: ISO049 | |
| Threads:ISO7/1 | |
| DIN Standard | |
| Materials: DIN1692 | |
| Dimensions: DIN2950 | |
| Threads: DIN2999 | |
| Finish | Electro Galvanized, Hot Dipped Galvanized, Normal Black, Shining Black, all be antirust treatment. |
| Shape | Equal, Reducing |
| Weight Grades | Heavy series, Standard series, Medium series, Light series |
| Quality Control | Excellent material, Precise angles, Good antirust property |
| Product Usage | Suitable for joining pipe lines of team gas oil air |
| Mechanical Properties | Tensile Strength>=33kg/mm2, Elongation>=8%, |
| Hardness<HB150 | |
| Hydraulic Test | Test Pressure: 25kg/cm2;Working Pressure: 16kg/cm2 |
| Chemical Properties | C:2.4~2.9 Si:1.2~1.7 Mn:0.3~0.55P:0.12 S:0. |
| Certificate | ISO9001:2000; SGS Certificate |
| Others | 1.Special design available according to requirement. |
| 2.MOQ: 1000pcs. Negotialble as per type. | |
| 3.Packaging:Carton, Woven Bag,Sack,Wooden Box,Pallet | |
| PACKING | CARTONS: |
| CTN A: 47*31*20cm Vol:1.4Cft Weight:2 kg/pc. | |
| CTN B: 30*25*19.5cm Vol:0.8Cft Weight:1 kg/pc | |
| PALLET: 97cm*97cm Weight: 15kg/pc | |
| QTY: 1000ctns/20'FCL, 24Pallets/20 FCL | |
| WOVEN BAG, WOODEN BOX |
Our Services
Service:(malleable iron plumbing material)
1) Prompt shipment: by reputed shipping line and professional documents
2) Cargos photo: before and after loading into container
3) Packing: new and strong seaworthy packing; as per buyer's special requests
4) Best after-sale service by email, phone, etc.
5) Feedback email after customer received the cargo
6) Offer service in 24 hours x 365 days
