Specifications

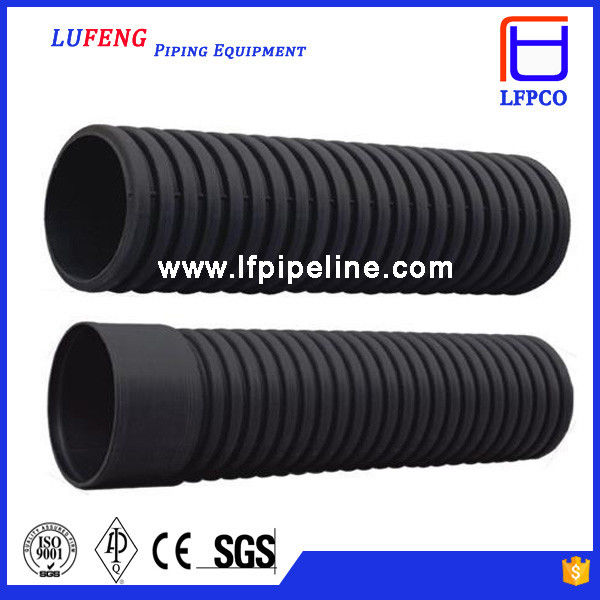

Corrugated Hdpe Pipe
1.Material: PE/PA/PP
2.Working Temp.:-30C-+100C
3.Chemical-resistant
4.Good bend
Plastic Corrugated Corrugated Hdpe Pipe
1.Features of Corrugated Hdpe Pipe
| Material | Polyethylene, flame retardance | |
| Working Temperature | -30°C-+100°C, short time to +120°C | |
| Structure | internal and external are wavy | |
| Color | Black, other colors can be customized | |
| Features | Good flexibility,twist resistance,bending resistance,abrasion acid, oil,coolant, | |
| etc. Shiny surfact can withstand heavy loads | ||
| Carring Capacity | can withstand the weight of foot, no broken, deformed,can be quickly restored | |
| and without any damage itself. | ||
| Application Area | Applicable to machine tools, power equipment, food machinery, automative | |
| instrument, motor industry etc. | ||
| Usage | put wires and cables into the flexible pipe and match with quick connector RQG | |
| seriers | ||
Full Specification of Corrugated Hdpe Pipe
| Part Number | Specifications | IDxOD(mm) | ||
| Curved radius(mm) | Packaging unit(mm) | |||
| PP-7.0 | AD7.0 | 4.5x7.0 | 10 | 200 |
| PP-10.0 | AD10.0 | 6.5x10.0 | 15 | 100 |
| PP-13.0 | AD13.0 | 10.0x13.0 | 20 | 100 |
| PP-14.0 | AD14.0 | 11.0x14.0 | 25 | 100 |
| PP-15.8 | AD15.8 | 12.0x15.8 | 28 | 100 |
| PP-18.5 | AD18.5 | 14.3x18.5 | 35 | 100 |
| PP-20.0 | AD20.0 | 16.0x20.0 | 38 | 100 |
| PP-21.2 | AD21.2 | 17.0x21.2 | 40 | 100 |
| PP-25.0 | AD25.0 | 20.0x25.0 | 42 | 100 |
| PP-28.5 | AD28.5 | 23.0x28.5 | 45 | 100 |
| PP-32.0 | AD32.0 | 25.0x32.0 | 50 | 50 |
| PP-34.5 | AD34.5 | 29.0x34.5 | 55 | 50 |
| PP-42.5 | AD42.5 | 36.0x42.5 | 65 | 25 |
| PP-54.5 | AD54.5 | 48.0x54.5 | 80 | 25 |
| PP-67.2 | AD67.2 | 56.3x67.2 | 100 | 25 |
| PP-80.0 | AD80.0 | 66.5x80.0 | 120 | 20 |
| PP-106.0 | AD106.0 | 91.0x106.0 | 160 | 20 |
Working Temperature of Corrugated Hdpe Pipe
| Material | PP | PE | PA |
| Working Temperature | -30°C~110°C | -30°C~100°C | -40°C~125°C |
| (short time can be reached 130°C) | (short time can be reached 120°C) | (short time can be reached 140°C) |
