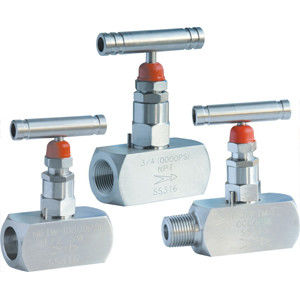

Needle Valves

Name: Needle Valves
Brand: Needle Valves
SKU: Needle Valves
Rating: 4.9 (133 reviews)

Large Image : Needle Valves Get Best Price

Product Details:

Contact Now

Detailed Product Description

Pressure Rating: Up to 6000psig (34⁰bar) @ 100⁰f(38⁰ C)
Temperature Rating from: 65⁰F to 450⁰F(.54⁰C to 282⁰C) with standard PTFE packing. and up to 600⁰F(315⁰C) with optional PEEK packing
Body Materials available: 316 stainless steel, alloy steel 400, and brass.
100% factory tested.

Description		Valves Body Materials
		Valves Body Materials
		SS 316	Brass	Alloy 400
Handle	Bar	Stainless Steel	-	Stainless Steel
	Knob	-	Black Phenolic	-
Packing Nut		SS 316 / A479	Brass 360 / B16	Alloy R.405 / B-164
Packing*		PTFE (TFE)
Packing Ring		SS 316 / A479	Brass 360 / B16	Alloy R-405 / B-164
Stem*	Vee	SS 316 / A479	Brass 360 / B16	Alloy R-405 / B-164
	Regulating
	Soft Seat
Soft Tip*		Kel - F(CTFE)
Panel Nut		SS 316 / A479	Brass 360 / B16	SS 316 / A276
Body*		SS 316 / A182	Brass 377 / B283	Alloy R-400 / B564
