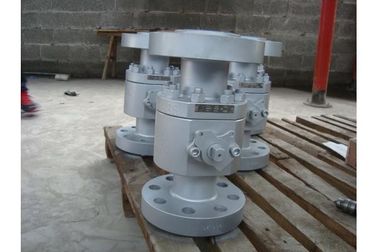

Forged Steel Lever Operated R. F Ends Full Port Floating Ball Valve

Forged Steel Lever Operated R. F Ends Full Port Floating Ball Valve
Forged Steel Lever Operated R. F Ends Full Port Floating Ball Valve

Large Image :  Forged Steel Lever Operated R. F Ends Full Port Floating Ball Valve Get Best Price

Product Details:
Contact Now
Detailed Product Description

Basic Info.

Model NO.:Q41F
Material:Stainless Steel
Connection Form:Flange
Driving Mode:Manual
Nominal Pressure:ANSI CLASS 150-900
Channel:Straight Through Type
Structure:Floating Ball Valve
Type:Floating Ball Valve
Function:Blow-Down Valve
Temperature:Normal Temperature
Application:Industrial Usage, Water Industrial Usage, Household Usage
Characteristic:Floating Ball Valve
Design & Manufacture:API 6D, Asme B16.34 & BS5351
Pre-Temp. Rating:Asme B16.34
Face to Face:Asme B16.10
Ends Connection:RF Flange
Inspect & Test:API 598
Certificate 1:Dnv CE 0575
Certificate 2:ISO 9001: 2008
Certificate 3:API 600
Certificate 4:API 6D
Export Markets:Global


Product Description


Forged Steel Lever Operated R. F Ends Full Port Floating Ball Valve
Conform to API 6D, BS5351, and ASME B16.34,  They are tested according to API 598, and marked as per MSS SP-25.

1. Construction is as follows:
- Full Port or Reduce Port
- Split Body
- Bolted Bonnet with spiral-would gasket
- Fire Safe Design
- Anti-static Design & Blow-out proof stem
- Double seat structure
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5

2. Main Part & Materials

Part Names		 Part Materials
Body WCB LCB WC6 CF8 CF8M CF3 CF3M
Bonnet WCB LCB WC6 CF8 CF8M CF3 CF3M
Ball A105+ENP SS304 F22 SS304 SS316 SS304L SS316L
Stem A105 F304 F6a F304 F316 F304L F316L
Seat/Seat Ring PTFE/RPTFE/NYLON/DEVLON/PEEK or METAL
Packing Graphite/PTFE
Gasket SS304+Graphite/SS304+Graphite
Bolts/Nuts B7/2H L7/4 B16/4 B8/8 B8M/8M B8/8 B8M/8M
Suitable Medium W.O.G etc. HNO3, CH3OOH etc.
Suitable Temperature -29~425 °C -46~340 °C -46~340 °C -196~427 °C -196~427 °C -196~427 °C -196~427 °C



3. Normal Pressure Rating
PN10~PN420, CLASS150~2500

4. Normal Size Range
DN50~DN200, 2"~8"
