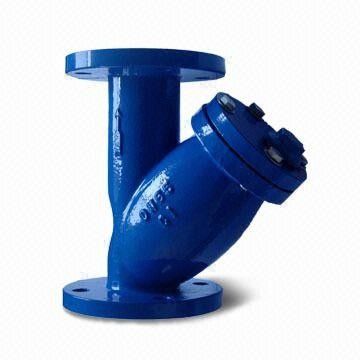

Cast-Iron Y Type Strainer

Water, steam, and oil as suitable medium
Size: 1/2 to 12 inches
Nominal pressure: PN1.0/1.6mPa
Dimension: ANSI B16.1, DIN3202-F1, and BS2080
Flange drilled is according to ANSI B16.1, ANSI B16.5, DIN 2501, and BS4504
Test standard: API 598
Body and bonnet: cast-iron
Disc: cast-iron, ductile-iron, and rubber
Mesh Screen: stainless steel
Bolt and nut: carbon steel with zinc-plated
Standard: ANSI, DIN3202-F1, and BS2080
