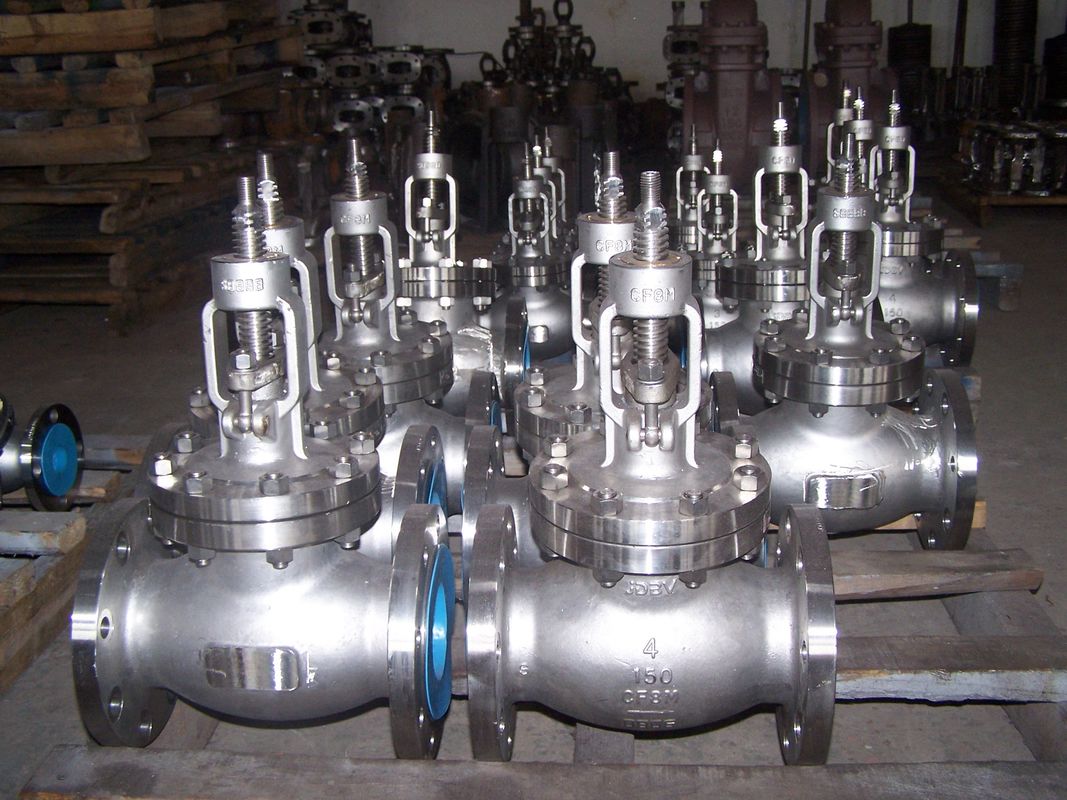

BS 1873 Cast Steel Globe Valve

BS 1873 Cast Steel Globe Valve
BS 1873 Cast Steel Globe Valve

Large Image :  BS 1873 Cast Steel Globe Valve Get Best Price

Product Details:
Contact Now
Detailed Product Description

Basic Info.

Model NO.:J41H
Actuator:Manual
Material:Carbon or Stainless Steel
Structure:Through Way Globe Valve
Sealing Form:Gland Packings Globe Valve
Stem Thread Position:Outside Screw Stem Globe Valve
Application:Lining Fluorine Valve, Needle Type Globe Valve, Cryogenic Globe Valve, Plunger Type Globe Valve, Heat Preservation Globe Valve, Forged Steel Globe Valve, Oxygen Globe Valve, Bellows Globe Valve
Standard:DIN, GB, ANSI, BSW, JIS
Characteristic:Cast Steel Globe Valve
Design & Manufacture:BS1873
Pre-Temp. Rating:Asme B16.34
Face to Face:Asme B16.10
Ends Connection:Asme B16.25, Asme B16.5/16.47
Inspect & Test:API 598
Certificate 1:Dnv CE 0575
Certificate 2:ISO 9001: 2008
Certificate 3:API 600
Certificate 4:API 6D


Product Description

BS 1873 Cast Steel Globe Valve Conform to BS1873, and ASME B16.34.
They are tested according to API 598, and marked as per MSS SP-25
1. Construction is as follows:
- Regular Port
- Outside Screw and Yoke(OS&Y)
- Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded and pressure seal bonnet
- Backseat
- Solid Disc(Plug, Ball/Spherical, Throttling)
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5 and B16.47 A/B

2. Main Part & Materials
Part NamesPart Materials
BodyWCBLCBWC6CF8CF8MCF3CF3MC83600/C95800
BonnetWCBLCBWC6CF8CF8MCF3CF3MC83600/C95800
Disc/Ball/WedgeWCBLCBWC6CF8CF8MCF3CF3MC83600/C95800
StemF6aF304F6aF304F316F304LF316LC83600/C95800
Seat/Seat Ring13%CrSS30413%CrSS304SS316SS304LSS316LC83600/C95800
PackingGraphite/PTFE
GasketSS304+Graphite/SS304+Graphite
Bolts/NutsB7/2HL7/4B16/4B8/8B8M/8MB8/8B8M/8MB8M/8M
Suitable MediumW.O.G etc.HNO3, CH3OOH etc.Sea Water etc.
Suitable Temperature-29~425 °C-46~340 °C-46~340 °C-196~427 °C-196~427 °C-196~427 °C-196~427 °C-29~220 °C

3. Normal Pressure Rating
PN10~PN420, CLASS150~2500
4. Normal Size Range
DN50~DN500, 2"~20"
