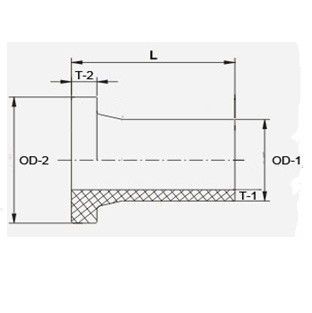

IPS STUB END

Size (Inch and mm)

SDR

OD-1

T-1

L

OD-2

T-2

2”

11

2.37

0.22

5.98

4.00

0.40

60.198mm

5.588mm

151.892mm

101.6mm

10.16mm

3”

11

3.50

0.32

5.98

5.00

0.60

88.9mm

8.128mm

151.892mm

127mm

15.24mm

4”

11

4.50

0.41

5.98

6.60

0.80

114.3mm

10.414mm

151.892mm

167.64mm

20.32mm

6”

11

6.63

0.60

7.99

8.50

0.80

168.402mm

15.24mm

202.946mm

215.9mm

20.32mm

8”

11

8.63

0.78

9.02

10.60

0.80

219.202mm

19.812mm

229.108mm

269.24mm

20.32mm

10”

11

10.75

0.98

9.02

12.80

1.30

273.05mm

24.892mm

229.108mm

325.12mm

33.02mm

12”

11

12.75

1.16

10.79

15.00

1.50

323.85

29.464mm

274.066mm

381mm

38.1mm

14”

11

14.00

1.27

11.00

17.50

1.70

355.6mm

32.258mm

279.4mm

444.5mm

43.18mm

16”

11

16.00

1.45

12.00

20.00

1.90

406.4mm

36.83mm

304.8mm

508mm

48.26mm

18”

11

18.00

1.64

12.00

21.10

2.10

457.2mm

41.656mm

304.8mm

535.94mm

53.34mm

20”

11

20.00

1.82

12.00

23.50

2.30

508mm

46.228mm

304.8mm

596.9mm

58.42mm

22”

11

22.00

2.00

12.00

25.60

2.50

558.8mm

50.8mm

304.8mm

650.24mm

63.5mm

24”

11

24.00

2.18

14.00

27.90

2.90

609.6mm

55.372mm

355.6mm

708.66mm

73.66mm
