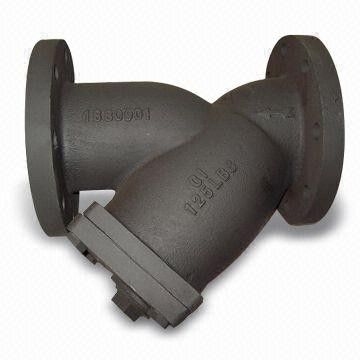

Y-strainers

      Y-strainer with PN1.0/1.6mpa Nominal Pressure and Stainless Steel Screen

      Model Number:LD-028-YS4

      Key Specifications/Special Features:

      Size:1/2 to 12 inches

      Nominal pressure: PN1.0/1.6mpa

      Face to face dimension: ANSI B16.1,DIN3203-F1,and BS2080

      Flange drilled is according to ANSI B16.1,ANSI B16.5,DIN 2501,and BS4504

      Test standard:API 598

      Body and bonnet:cast iron and ductile iron

      Disc:cast iron,ductile iron,and rubber water,steam, and oil as suitable medium

      Screen:stainless steel

      Bolt and nut:carbon steel with zinc plated

      Standard: ANSI,DIN3202-F1,and BS2080
