blind flange

blind flange
blind flange blind flange

Large Image :  blind flange Get Best Price

Product Details:
Place of Origin: China
Brand Name: stonefitting
Payment & Shipping Terms:
Price: US $ 0.01-1,200/ Unit
Packaging Details: Export Standard Packing
Delivery Time: Asap,As per quantity,we can delivery in 30 days
Payment Terms: L/C,T/T
Supply Ability: 100 Ton/Tons per Month
Minimum Order Quantity: 10 Unit/Units
Detailed Product Description
Highlight:

flange

,

pipefitting

,

blind

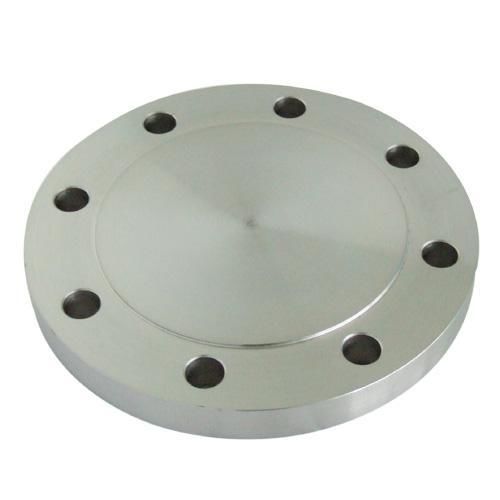

A blind flange is a popular type of pipe flange. It has no bore in the middle, and is primarily used to close ends of piping systems. This flange permits easy access to a line once it has been sealed. It sometimes can be machined to accept a nominal sized pipe to which a threaded or welded reduction is being made. Ahad blind flanges are available in various sizes and materials for you to choose from.

Size
Blind flange 3/8"~80"
DN10~DN2000

Pressure
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500 European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100

Flange Facing Types
American Series: Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ)
European Series: Type A(Flat Face), Type B(Raised Face), Type C(Tongue), Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot), Type H (O-Ring Groove)

Materials
Carbon steel: A105
Alloy steel: A182 F 1-F 2-F 5-F 9-F 10-F 91-F 92-F 122-F 911-F 11-F 12-F 21-F 22
Stainless steel: A182 304-304H-304L-304N-304LN 316-316H-316L-316N-316LN 321-321H 347-347H
Low temperature steel: A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8
High performance steel: A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70
