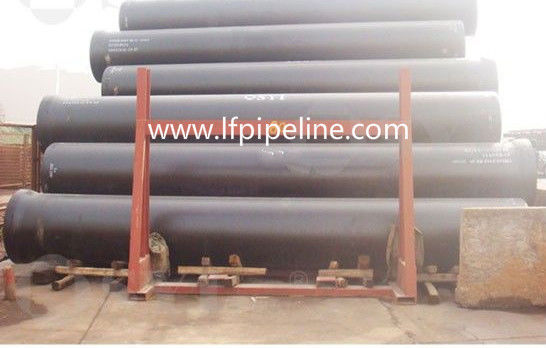

K9 Ductile Iron Pipes

K9 Ductile Iron Pipes

1. Material: Ductile iron grade 500-7/ 450-10 in accordance with ISO1083
2. Standard: ISO 2531, EN545, EN598, ANSI, AWWA
3. Certificate: ISO9001, ISO14001, SGS, NSF, WRAS
4. Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test
5. Length: 6m or cut into 5.6m, 5.7m, 5.8m
6. Internal Lining: Cement, conform to ISO4179
7. External coating: Zinc + Bitumen, conform to ISO8179
8. Rubber: NBR, SBR, EPDM according to ISO4633 / EN681.1
9. Note: The gaskets, bolts & nuts are supplied respectively as your special requirement

Production process


Quality Control Groups

Dimensions Test
Manufacture process Inspection
Process Inspection including sand cleaning, assembling, packing and coating
Final Inspection including delivery marks and etc.
Particular Tests for different products, such as Load Test, Hydro Test and etc.

Raw Material Inspection
Raw Material inspection including chemical
components analysis, tensile strength test and etc.
Laboratory

Chemical Components
Microstructure Test
Tensile Strength
